ZCM-260 Right Angle Hollow Rotary Table
The ZCM-260 right angle hollow rotary table is built for heavy-duty servo rotary positioning systems that require high torque, strong axial/radial load capacity, hollow platform routing, and compact right-angle motor installation. It is suitable for large fixtures, rotary indexing equipment, automated production systems, and precision positioning applications where both load capacity and installation flexibility are important.
Request a Quote Back to ZCM Series
Key Features of ZCM-260
Heavy Load Capacity
Designed for large fixture rotation, high axial load, high radial load, and strong moment support.
Right Angle Structure
Side-mounted motor layout helps reduce axial machine length and improves installation flexibility.
High Torque Output
Rated output torque reaches 2950 N.m under selected ratio configurations for demanding applications.
Wide Ratio Range
Supports L1 and L2 ratio options from 15 to 300 for torque, speed, and positioning requirements.
Ordering Code Example
Example ordering code: ZCM-260-30-35-114.3-200-M12. Move your mouse over each code segment to see its meaning.
Frame Size
ZCM-260 is selected for large rotary tables, heavy fixtures, and stronger servo-driven indexing systems.
Ratio Selection
L1 ratios focus on higher efficiency. L2 ratios provide stronger torque multiplication for heavier loads.
Motor Matching
Motor shaft diameter, pilot diameter, hole pitch, and screw size should be confirmed before ordering.
Selection Note
Confirm load weight, fixture inertia, required speed, installation space, and accuracy before final model selection.
Technical Parameters
| Item | Unit | ZCM260-L1 | ZCM260-L2 |
|---|---|---|---|
| Bearing Structure | – | Cross roller bearing | |
| Reduction Ratio | i | 15 / 21 / 30 / 50 | 90 / 120 / 150 / 210 / 300 |
| Rated Output Torque | N.m | 2950 / 1950 | 2950 |
| Maximum Output Torque | N.m | 3 Times Rated Torque | |
| Positioning Accuracy | arc-min | ≤2 | ≤4 |
| Repeated Positioning Accuracy | arc-sec | ≤30 | ≤60 |
| Allowable Disk Speed | rpm | 200 Intermittent Operation | |
| Adapt to Servo Motor | W | 2000–5000 | |
| Suitable for Stepping Motor | – | 130–150 Stepper | |
| Allowable Axial Load | N | 29600 | |
| Allowable Radial Load | N | 29600 | |
| Design Load | kg | 1000 | |
| Allowable Moment of Inertia | N.m | 750 | |
| Torsional Rigidity | N.m/arcmin | 175 | |
| Overturning Moment | N.m | 6300 | |
| Accuracy Life | h | 20000h Intermittent Operation | |
| Protection Level | IP | 65 | |
| Lubrication Method | – | Long-term lubrication | |
| Installation Method | – | Arbitrary | |
| Concentricity of Rotating Platform | mm | ≤0.01 | |
| Parallelism of Rotating Platform | mm | ≤0.01 | |
| Transmission Efficiency | % | 95 | 90 |
| Noise | dB | ≤67 | ≤67 |
| Weight | kg | 46 | 52 |

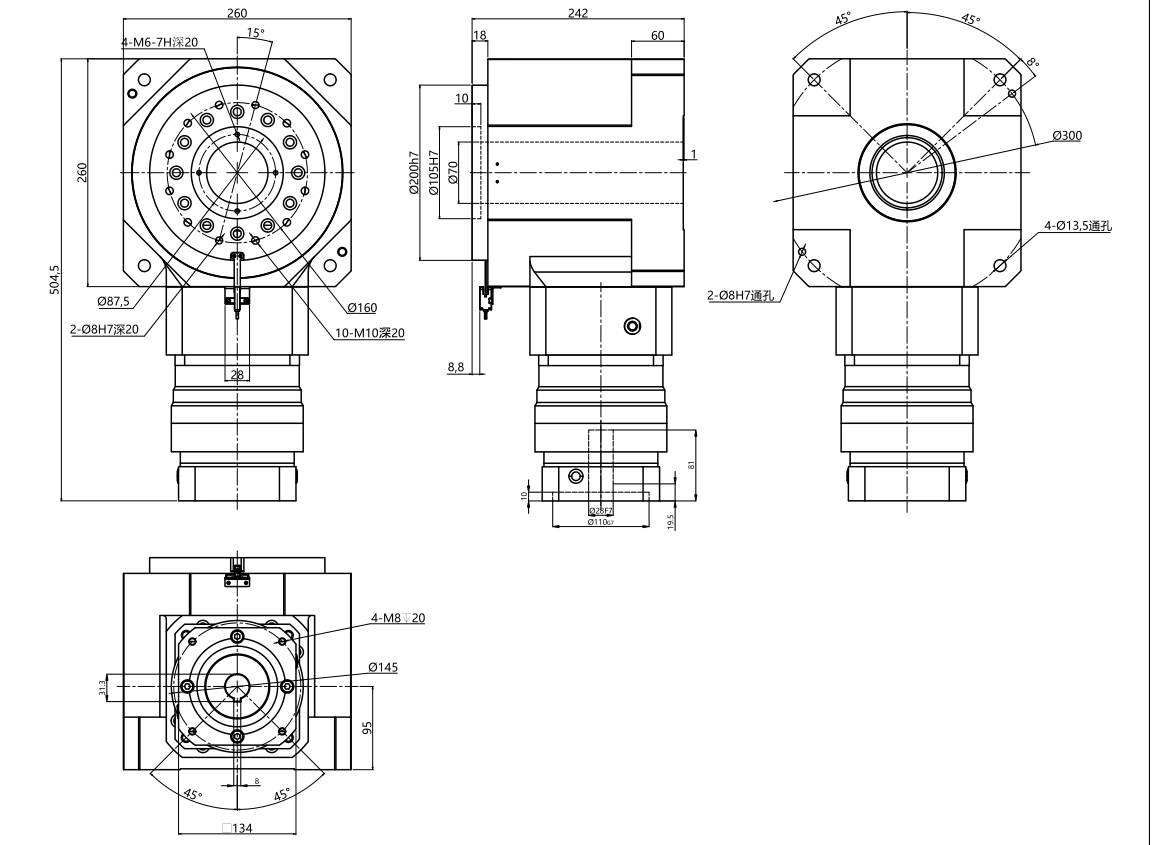

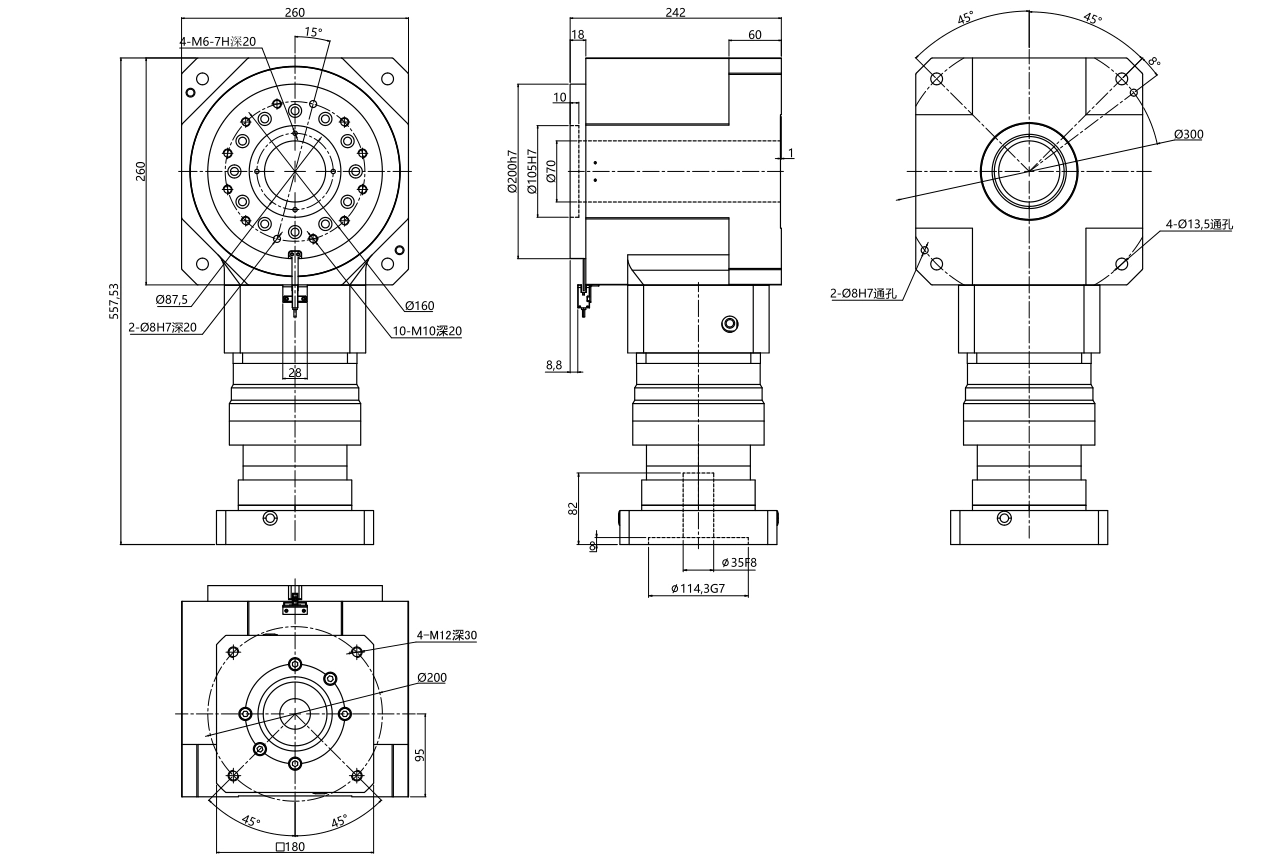

Outline Dimensional Drawing
Select L1 or L2 below to review the corresponding outline dimensional drawing for installation reference.
Typical Applications
Automation Equipment
Used in large rotary indexing systems, automated assembly stations, and fixture positioning equipment requiring strong load support.
View Automation
CNC Machinery
Suitable for rotary positioning mechanisms, auxiliary indexing units, and heavy workpiece handling in industrial machines.
View CNC Machines
Robotic Positioning Systems
Supports servo-driven rotary axes where torque capacity, installation space, and hollow routing in the robotic positioning systems.
View RoboticsRelated Products
ZCM-180 Rotary Table
Lower capacity ZCM model for medium-load right angle rotary positioning and compact servo-driven systems.
View ZCM-180
ZCM Series Overview
Return to the ZCM Series page to compare ZCM-130, ZCM-180, ZCM-225, and ZCM-260 models.
Back to ZCM Series
Hollow Rotary Table
Compare ZBT, ZCTK, ZCTR, ZCH, and ZCM hollow rotary table series for different installation needs.
View CategoryNeed Help Selecting ZCM-260?
Send your load weight, fixture size, servo motor model, ratio requirement, installation direction, and accuracy requirement. Our team can help confirm whether ZCM-260 is suitable for your heavy-duty right angle rotary positioning system.
