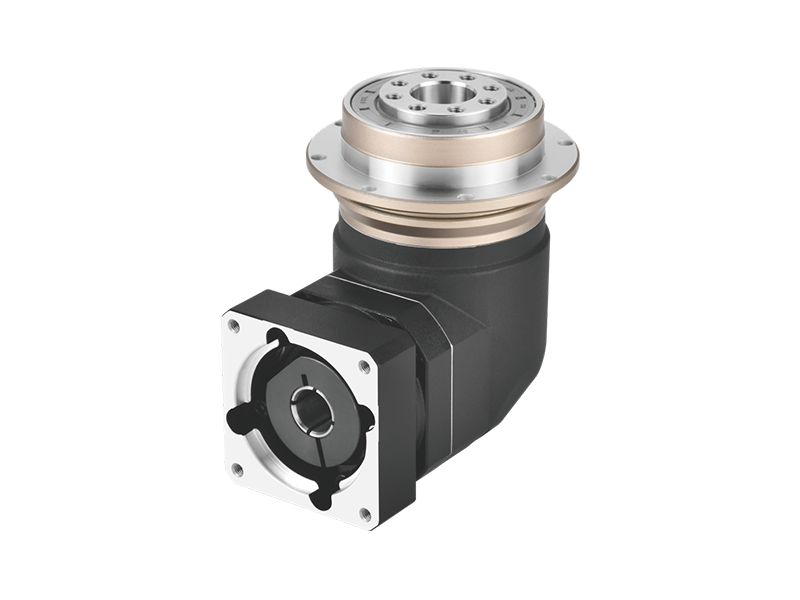

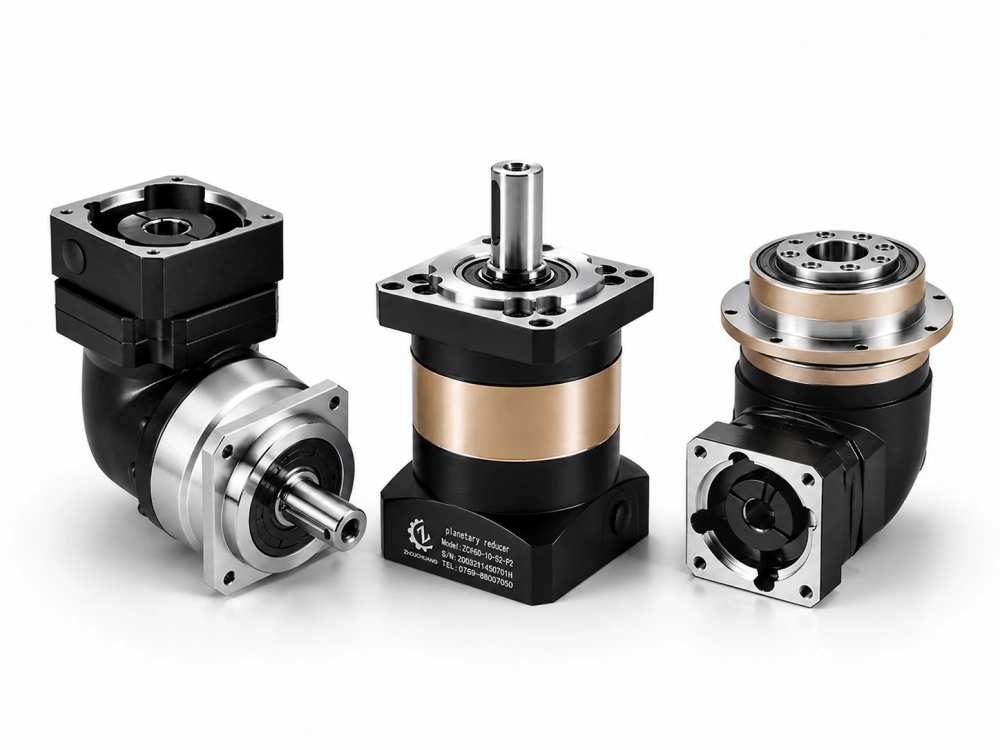

ZCDR Series Right Angle Planetary Gearbox
The ZCDR Series right angle planetary gearbox is designed for servo-driven systems requiring 90-degree power transmission, compact installation, high torque output, and reliable positioning accuracy. It is suitable for automation equipment, packaging machinery, robotics, conveyors, CNC auxiliary axes, and industrial machines where motor space must be arranged at a right angle.
Request a Quote View Right Angle Gearbox
Key Advantages of ZCDR Series
90-Degree Transmission
Right angle output direction helps machine builders save installation space and simplify compact servo drive layouts.
High Torque Output
Planetary gear transmission supports stable torque delivery for indexing, feeding, positioning, and heavy-duty motion tasks.
Servo Motor Matching
Multiple frame sizes and ratios support different servo motor interfaces, speed requirements, and automation load conditions.
Industrial Reliability
Designed for continuous equipment operation, compact machinery, robotic systems, and demanding production environments.
Ordering Code Example
Example ordering code: ZCDR-90-5-19-70-90-M6. Move your mouse over each segment to see the meaning. Final motor interface dimensions should be confirmed according to the selected servo motor and installation requirements.
Series and Frame Size
ZCDR identifies the right angle planetary gearbox series. The frame size should be selected according to torque, motor power, installation space, and load condition.
Ratio Selection
Lower ratios are suitable for higher speed output. Higher ratios help increase torque output and improve motion stability.
Motor Interface
Motor shaft diameter, pilot diameter, mounting hole pitch, and screw size must match the servo motor drawing.
Selection Note
Before ordering, confirm torque, speed, backlash, load type, duty cycle, radial load, axial load, and installation direction.
Motor Interface and Installation Dimensions
Before ordering a ZCDR right angle planetary gearbox, please confirm the servo motor interface, shaft diameter, pilot diameter, mounting hole pitch, and mounting screw size. These values affect motor matching, flange alignment, transmission stability, and installation accuracy.
Motor Shaft Diameter
Confirm the motor shaft size before selecting the gearbox input bore.
Motor Pilot Diameter
The pilot diameter helps align the servo motor and gearbox input side accurately.
Mounting Hole Pitch
Check the motor mounting hole distance to match the adapter flange.
Mounting Screw Size
Select the correct screw size to ensure stable motor installation.
Reducer Operating Condition Selection Table
The service factor should be selected according to load type, starts per hour, and daily operating time. For continuous operation, frequent acceleration and deceleration, or large output inertia, a larger gearbox frame may be recommended.
| Load Type | Starts per Hour (Z) | h ≤ 4 | 4 ≤ h ≤ 8 | 8 ≤ h ≤ 12 | 12 ≤ h ≤ 16 | 16 ≤ h ≤ 24 |
|---|---|---|---|---|---|---|
| Even and Stable Load | Z ≤ 10 | 0.9 | 1.0 | 1.1 | 1.4 | 1.8 |
| 10 ≤ Z ≤ 30 | 1.0 | 1.2 | 1.3 | 1.6 | 2.0 | |
| 30 ≤ Z ≤ 100 | 1.2 | 1.4 | 1.5 | 1.8 | 2.2 | |
| Medium Shock Load | Z ≤ 10 | 1.4 | 1.5 | 1.8 | 2.2 | |
| 10 ≤ Z ≤ 30 | 1.4 | 1.6 | 1.65 | 2.0 | 2.5 | |
| 30 ≤ Z ≤ 100 | 1.6 | 1.8 | 2.0 | 2.2 | 2.8 | |
| Heavy Shock Load | Z ≤ 10 | 1.6 | 1.8 | 2.2 | 2.2 | 2.8 |
| 10 ≤ Z ≤ 30 | 1.8 | 2.0 | 2.4 | 2.4 | 3.0 | |
| 30 ≤ Z ≤ 100 | 2.0 | 3.0 | 2.7 | 2.7 | 3.3 |
Reducer Performance Parameter Table
The following data summarizes the ZCDR Series right angle planetary gearbox range. Final selection should be confirmed according to torque, ratio, speed, load condition, precision requirement, motor model, and installation space.
| Item | Unit | Ratio | ZCDR60 | ZCDR90 | ZCDR120 | ZCDR140 | ZCDR200 | ZCDR255 |
|---|---|---|---|---|---|---|---|---|
| Rated Output Torque T2N | N·m | 4 | 55 | 145 | 310 | 610 | 1150 | 1650 |
| Rated Output Torque T2N | N·m | 5 | 68 | 176 | 375 | 720 | 1220 | 1700 |
| Rated Output Torque T2N | N·m | 7 | 50 | 152 | 330 | 590 | 1150 | 1500 |
| Rated Output Torque T2N | N·m | 10 | 40 | 120 | 260 | 520 | 920 | 1250 |
| Maximum Output Torque T2B | N·m | 4–100 | 2.5 × rated torque | |||||
| Rated Input Speed n1N | rpm | 4–100 | 4000 | 4000 | 3000 | 3000 | 3000 | 2000 |
| Maximum Input Speed n1B | rpm | 4–100 | 8000 | 8000 | 6000 | 6000 | 6000 | 4000 |
| Precision Clearance P1 | arcmin | L1 | ≤3 | ≤2 | ≤2 | ≤2 | ≤3 | ≤3 |
| Precision Clearance P1 | arcmin | L2 | ≤5 | ≤4 | ≤4 | ≤4 | ≤5 | ≤5 |
| Precision Clearance P2 | arcmin | L1 | ≤5 | ≤4 | ≤4 | ≤4 | ≤5 | ≤5 |
| Precision Clearance P2 | arcmin | L2 | ≤7 | ≤6 | ≤6 | ≤6 | ≤7 | ≤7 |
| Torsional Rigidity | N·m/arcmin | 4–100 | 13 | 31 | 82 | 151 | 440 | 1006 |
| Allowable Bending Moment F1 | N | 4–100 | 125 | 235 | 430 | 1320 | 3200 | 5900 |
| Allowable Axial Force F2 | N | 4–100 | 1800 | 2000 | 4800 | 5300 | 6110 | 10600 |
| Service Life | hr | 4–100 | 20000 h continuous operation | |||||
| Efficiency η | % | L1 | ≥97% | |||||
| Efficiency η | % | L2 | ≥94% | |||||
| Weight | kg | L1 | 1.1 | 2.9 | 5.4 | 11.9 | 31.6 | 56.1 |
| Weight | kg | L2 | 1.7 | 4.2 | 8 | 15.9 | 36.9 | 70.4 |
| Protection Level | – | 4–100 | IP65 | |||||
| Noise | dB | 4–100 | ≤56 | ≤58 | ≤62 | ≤65 | ≤70 | ≤75 |
| Operating Temperature | ℃ | 4–100 | -10℃ to +90℃ | |||||
| Lubrication Method | – | 4–100 | Long-term lubrication | |||||
Moment of Inertia of Reducer
Moment of inertia is important for servo motor matching, acceleration, deceleration, and positioning control. Please check the ratio and frame size carefully before selecting the final gearbox model.
| Series | Ratio | ZCDR60 | ZCDR90 | ZCDR120 | ZCDR140 | ZCDR200 | ZCDR255 |
|---|---|---|---|---|---|---|---|
| L1 / kg·cm² | 4 | 0.18 | 0.67 | 2.87 | 7.54 | 25.03 | 58.31 |
| 5 | 0.17 | 0.65 | 2.71 | 7.42 | 23.29 | 53.27 | |
| 7 | 0.14 | 0.6 | 2.62 | 7.14 | 22.48 | 50.97 | |
| 10 | 0.14 | 0.58 | 2.57 | 7.03 | 22.51 | 50.56 | |
| L2 / kg·cm² | 16 | 0.18 | 0.65 | 0.58 | 2.8 | 7.42 | 23.29 |
| 20–35 | 0.17 | 0.6 | 0.47 | 2.71 | 7.06 | 22.51 | |
| 40–100 | 0.04 | 0.58 | 0.44 | 2.57 | 7.06 | 22.51 |
Outline Dimensional Drawing

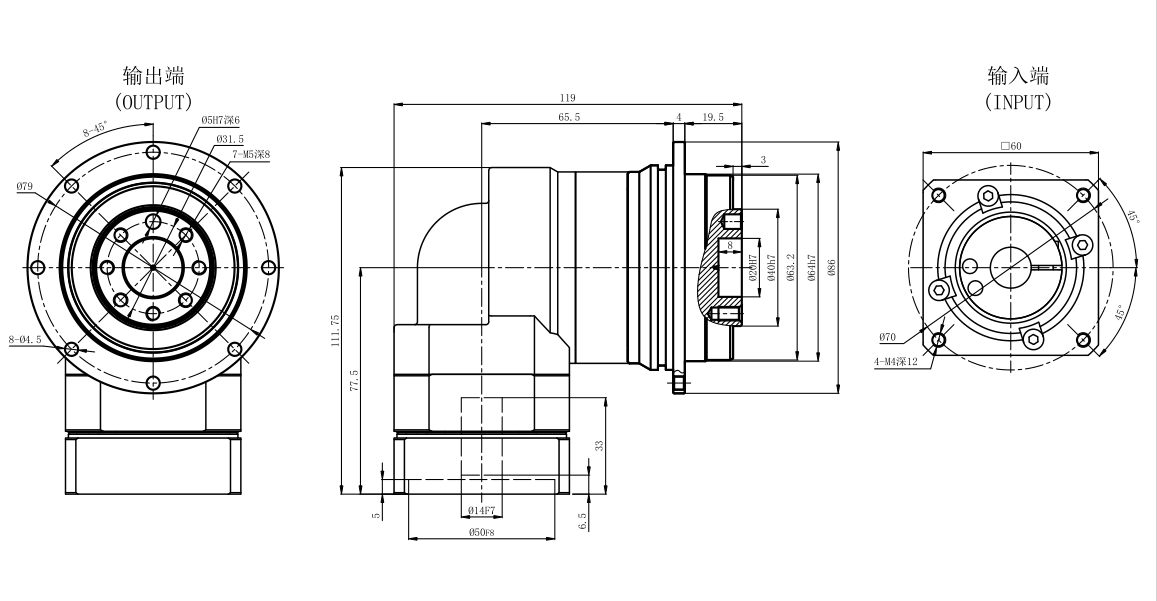

The outline dimensional drawing provides detailed information on the installation envelope, right angle structure, input and output dimensions, shaft size, flange dimensions, and mounting hole positions. Select a model below to review the corresponding drawing.
Dimension Table
| Size | LA | LZ | S | LR | LB | LE | LC | L |
|---|---|---|---|---|---|---|---|---|
| ZCDR60-L1 | Φ70 | 4-M4,4-M5 | Φ11 / Φ14 | 33 | Φ50 | 5 | 60 | 114 |
| ZCDR60-L2 | Φ70 | 4-M4,4-M5 | Φ11 / Φ14 | 33 | Φ50 | 5 | 60 | 143 |
| ZCDR90-L1 | Φ90 | 4-M5,4-M6 | Φ19 | 46.5 | Φ70 | 7 | 90 | 162.8 |
| ZCDR90-L2 | Φ90 | 4-M5,4-M6 | Φ19 | 42 | Φ70 | 7 | 90 | 160.5 |
| ZCDR120-L1 | Φ145 | 4-M8 | Φ22 / Φ24 | 64 | Φ110 | 10 | 130 | 204 |
| ZCDR120-L2 | Φ145 | 4-M8 | Φ22 / Φ24 | 59 | Φ110 | 10 | 130 | 230.5 |
| ZCDR140-L1 | Φ200 | 4-M12 | Φ35 / Φ42 | 83 | Φ114.3 | 10 | 180 | 276 |
| ZCDR140-L2 | Φ200 | 4-M12 | Φ35 / Φ42 | 83 | Φ114.3 | 10 | 180 | 280.5 |
Typical Applications
ZCDR Series right angle planetary gearboxes are suitable for machines requiring compact 90-degree transmission, stable torque output, and reliable servo motion control.
Packaging Machinery
Used in feeding, sealing, labeling, indexing, and synchronized motion systems where installation direction is limited.
View Packaging ApplicationsAutomation Equipment
Suitable for transfer systems, assembly machines, inspection equipment, indexing tables, and compact drive units.
View Automation ApplicationsRobotics
Applied in robot auxiliary axes, grippers, rotary modules, compact actuators, and space-limited servo systems.
View Robotics ApplicationsConveyor Systems
Used where the motor direction needs to be changed by 90 degrees for compact transmission and safer machine layouts.
Discuss Your ApplicationHow to Select a ZCDR Right Angle Gearbox
To select a suitable ZCDR right angle planetary gearbox, confirm the servo motor model, required ratio, output torque, input speed, load type, daily operating time, start-stop frequency, backlash requirement, radial load, axial load, and available installation space. For high-frequency operation or shock load conditions, choosing a larger frame size can improve reliability and service life.
