Right Angle Planetary Gearbox Solutions

Right angle planetary gearboxes are designed for servo-driven machines where the motor input direction needs to be turned by 90 degrees. This compact layout helps machine builders save axial space, simplify equipment arrangement, and maintain stable torque transmission in automation systems, robotics, packaging machinery, CNC equipment, and precision positioning applications.

Request a Quote View Series

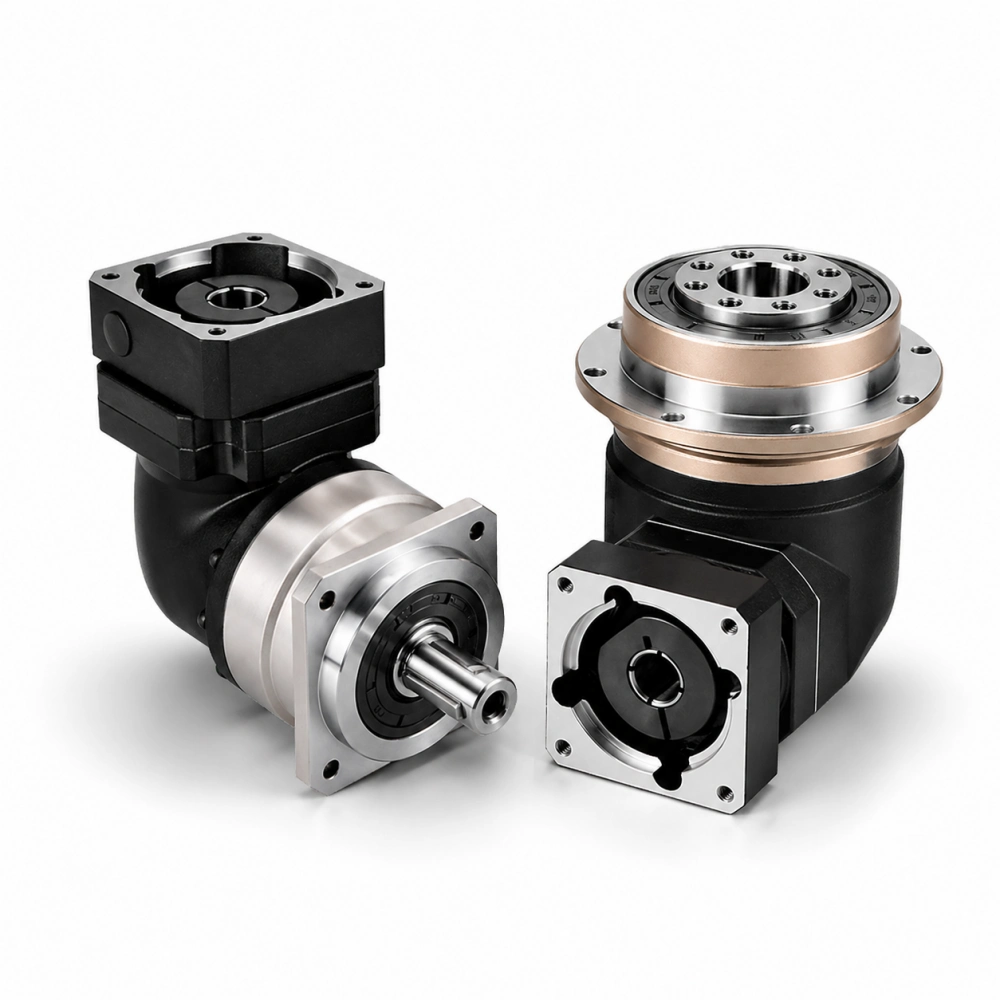

right angle planetary gearbox solutions for servo automation

Right Angle Planetary Gearbox Series

Choose a right angle gearbox series according to installation direction, torque requirement, backlash level, servo motor interface, mounting space, and machine transmission structure.

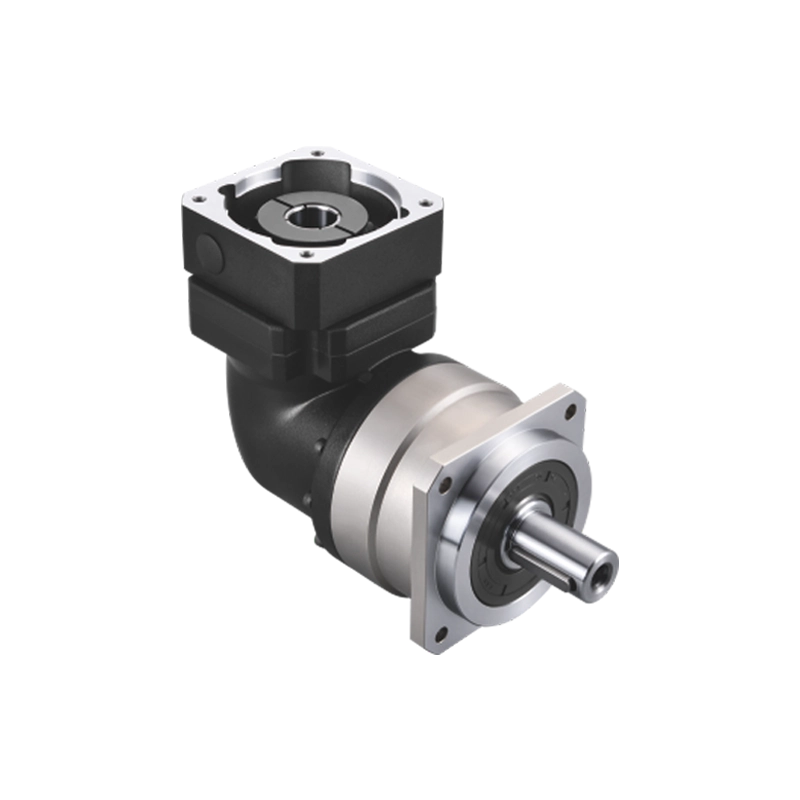

VRBR Series

VRBR Series right angle planetary gearboxes are suitable for servo transmission systems that require a 90-degree input-output layout, compact mounting, and reliable torque output for automation equipment.

View VRBR Series

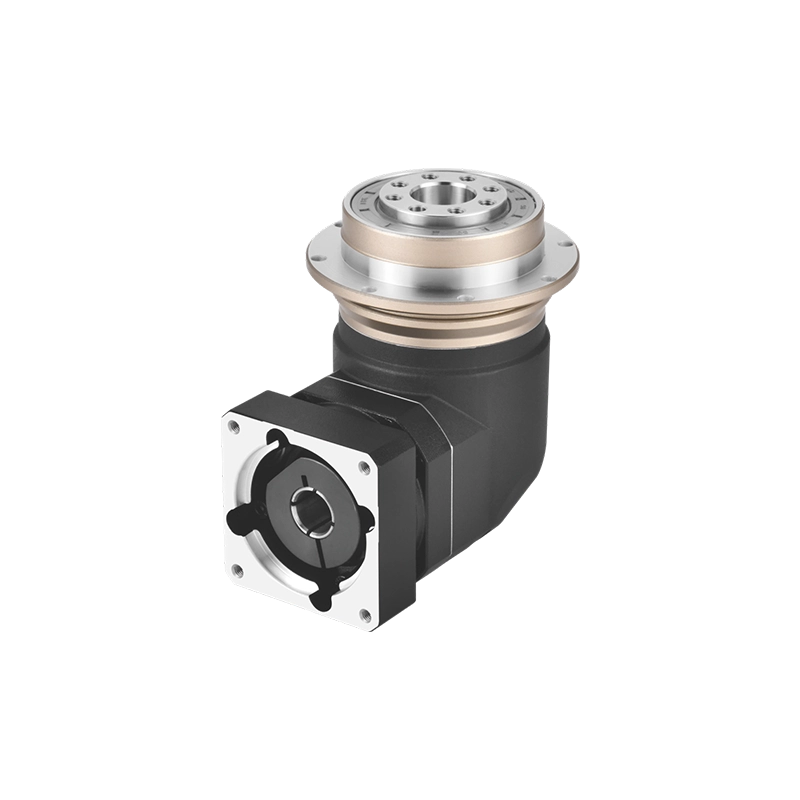

ZCDR Series

ZCDR Series disc precision right angle planetary gearboxes are designed for applications that require stable right angle transmission, high rigidity, and precise rotary motion control.

View ZCDR Series

Why Choose a Right Angle Planetary Gearbox

90-Degree Layout

Changes the motor input direction to help save axial installation space inside the machine.

Compact Machine Design

Useful when the motor cannot be installed directly in line with the driven mechanism.

Servo Motor Compatibility

Can be matched with servo motors for controlled speed, torque, and positioning performance.

Stable Torque Transfer

Designed for reliable power transmission in precision automation and motion control systems.

Typical Applications

Right angle planetary gearboxes are widely used when equipment needs compact 90-degree transmission, reliable torque output, and flexible motor installation.

Robotics

Used in robotic joints, rotary arms, grippers, and compact servo-driven positioning modules.

View Robotics Applications

Automation Equipment

Suitable for assembly machines, transfer systems, testing equipment, and compact drive units.

View Automation Applications

CNC Machines

Applied in tool changers, auxiliary axes, rotary positioning systems, and machine tool automation.

View CNC Applications

Packaging Machinery

Used in indexing, feeding, labeling, sealing, and synchronized motion systems where space is limited.

View Packaging Applications

Right Angle vs Inline Planetary Gearbox

A right angle planetary gearbox is suitable when the machine requires a 90-degree transmission direction or when the motor must be installed beside the driven mechanism. An inline planetary gearbox is better when the motor and output shaft can be arranged on the same axis. For compact equipment, packaging machinery, and machines with limited axial space, the right angle structure often provides a cleaner and more practical installation solution.

Compare Inline Gearboxes

How to Select a Right Angle Planetary Gearbox

Before selecting a right angle planetary gearbox, confirm the required output torque, reduction ratio, backlash level, input speed, motor frame size, shaft diameter, flange size, radial load, axial load, duty cycle, and available installation space. For servo-driven machinery, the gearbox should also match the motor interface and positioning accuracy requirements.

Need Help Selecting a Right Angle Gearbox?

Send your motor model, required torque, ratio, installation direction, machine space, and application details. Our team can help recommend a suitable right angle planetary gearbox.
