ZCTK Hollow Rotary Table: 200, 280 and 450 Models
The ZCTK Series hollow rotary table is designed for servo-driven rotary positioning systems requiring a hollow output platform, compact structure, high positioning accuracy, and stable load capacity. It supports precise indexing, automation assembly, inspection equipment, packaging machinery, and high-accuracy rotary motion applications.
Request a Quote

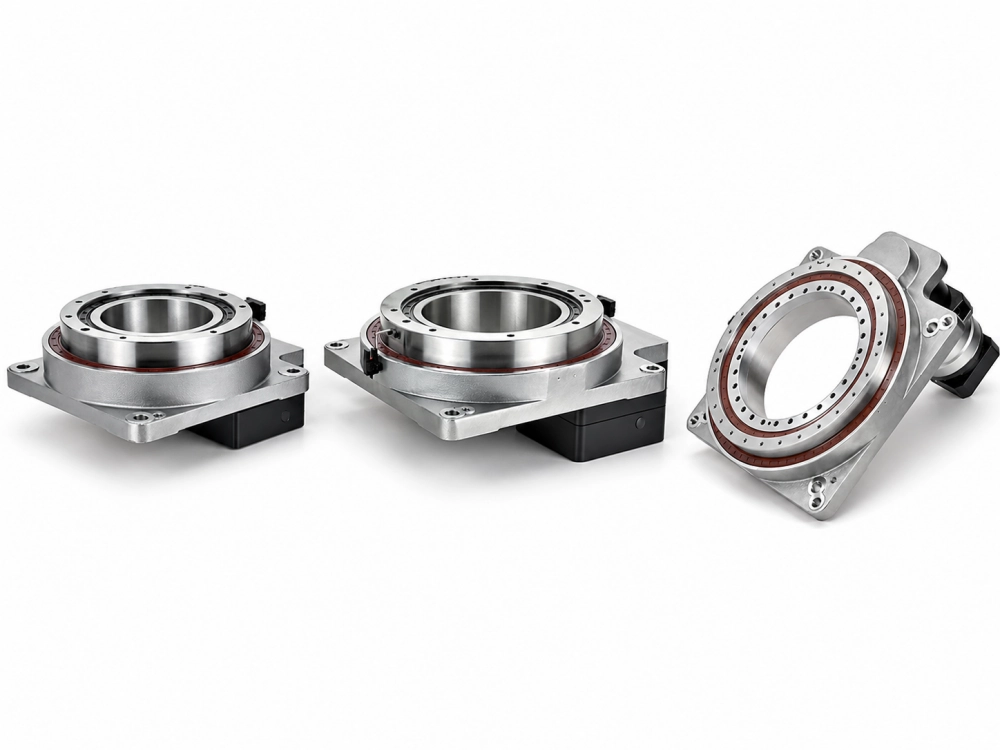

ZCTK Series Models
ZCTK-200 Rotary Table
Compact hollow rotary table for 750–1000W servo motor applications, suitable for indexing stations, small automation systems, and precision positioning platforms.
View Details
ZCTK-280 Rotary Table
Higher load hollow rotary platform for 1000–3000W servo motor matching, automation fixtures, inspection systems, and rotary positioning equipment.
View Details

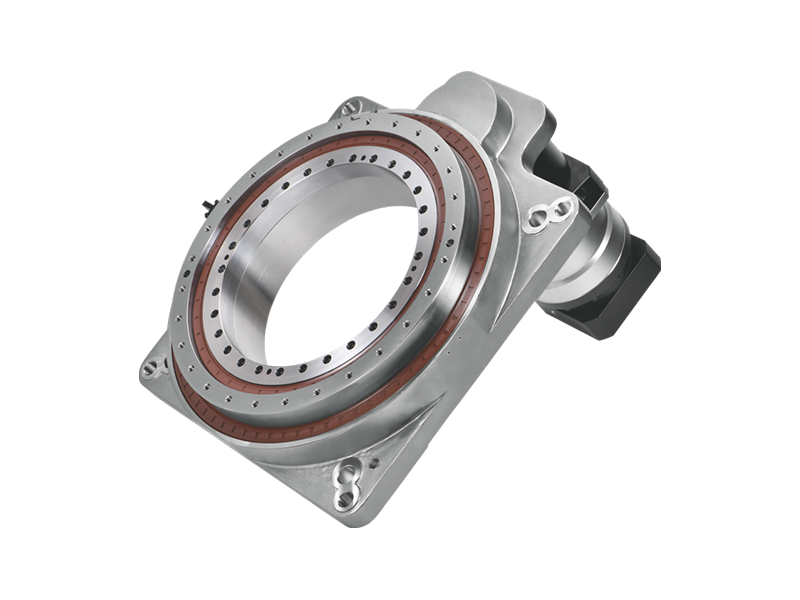

ZCTK-450 Rotary Table
Large hollow rotary table for heavy fixtures, high moment load applications, large indexing platforms, and precision industrial automation systems.
View DetailsWhy Choose ZCTK Series
Hollow Output Platform
Allows cables, air pipes, shafts, and wiring to pass through the center for cleaner machine integration.
Cross Roller Bearing
Integrated bearing structure supports stable rotation, high rigidity, and strong moment load capacity.
High Positioning Accuracy
Designed for precise rotary indexing, repeatable positioning, and controlled servo-driven motion.
Servo Motor Compatible
Compatible with servo motors and stepper motors for flexible automation system design.
Applications
Rotary Indexing Stations
Used for multi-station indexing, positioning fixtures, and automated assembly tables.
Discuss Your ApplicationInspection Equipment
Suitable for vision inspection, measurement platforms, and precision testing systems.
View Automation ApplicationsLaser Marking and Welding
Supports controlled rotary positioning for laser marking, welding, and processing fixtures.
View CNC ApplicationsPackaging and Dispensing
Applied in rotary feeding, dispensing, sealing, labeling, and synchronized packaging systems.
View Packaging ApplicationsRelated Series
ZBT Series
High-rigidity hollow rotary table series for heavy-duty rotary positioning and large bore integration.
View ZBT Series
Hollow Rotary Table
Return to the main hollow rotary table category page to compare available rotary table series.
View Category
Planetary Gearbox
Compare planetary gearbox solutions for servo transmission, speed reduction, and motion control.
View GearboxZCTK Hollow Rotary Table for Servo Indexing
Choose the model from the fixture and mounting drawing
Compare ZCTK-200, ZCTK-280 and ZCTK-450 using the table footprint, bore, output mounting pattern and overall height. Confirm the space available for the motor and cabling as well as the rotating fixture. Model names should not replace the load and dimension checks in the selected drawing.
Specify the complete indexing cycle
For a servo rotary table application, provide the fixture and workpiece mass, load offset, move angle, move time, dwell time and daily operating duty. State the repeatability needed at the inspection or assembly position. Drive tuning and fixture stiffness also affect settling time; the mechanical table is one part of the positioning system.
Keep the supply scope clear
Confirm the motor interface and whether the quotation covers the mechanical table only or additional agreed components. Do not assume that a controller, drive, fixture or complete machine is included. The servo rotary table integration guide explains the wider system requirements.
Need Help Selecting a ZCTK Model?
Send your load, motor size, ratio requirement, installation space, and required positioning accuracy. Our team can help recommend the suitable hollow rotary table.
