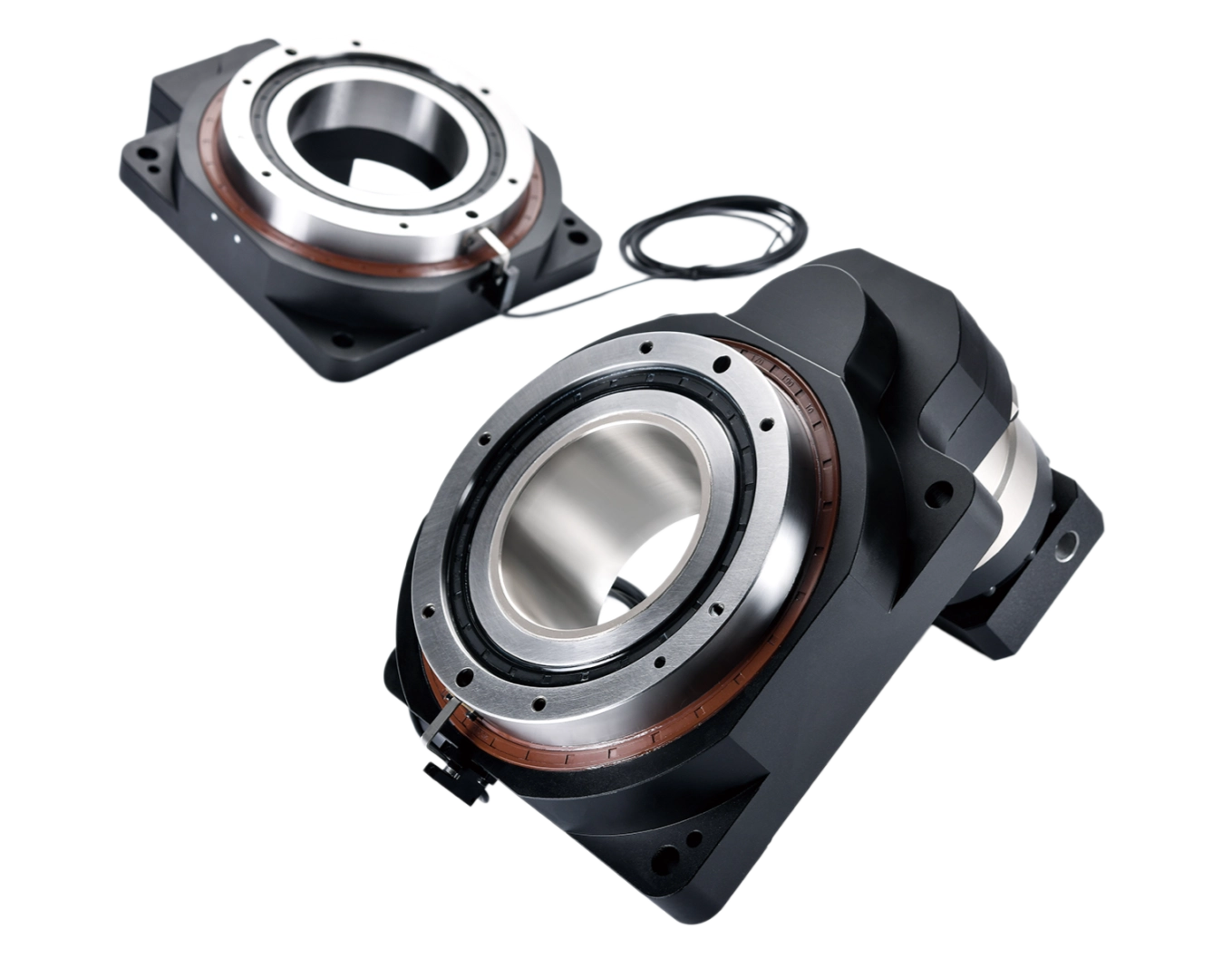

ZCTZ Series Heavy-Duty Hollow Rotary Table
The ZCTZ Series heavy-duty hollow rotary table is designed for servo-driven rotary positioning systems that require stronger load capacity, stable indexing accuracy, and a hollow output platform for cable, air pipe, or fixture routing. It is suitable for industrial automation equipment, CNC rotary positioning, heavy indexing stations, and larger precision motion control systems.
Key Features of ZCTZ Series
Heavy-Duty Structure
Designed for stronger rotary positioning systems where load support, fixture stability, and long-term operating reliability are important.
Hollow Output Platform
The hollow center allows cables, air pipes, wiring, or fixture components to pass through the rotary table for cleaner machine integration.
Wide Ratio Range
L1 and L2 ratio options support different speed, torque, and positioning requirements for servo-driven automation systems.
Stable Positioning
Cross roller bearing structure and rigid housing design help maintain repeatable rotary motion under industrial operating conditions.
ZCTZ Series Models
The ZCTZ Series currently includes ZCTZ-200 and ZCTZ-280 models. This page is used as the series overview. Detailed ordering code, technical parameters, and outline drawings should be placed on each model page to avoid making the series page too heavy and to keep the SEO structure clear.
ZCTZ-200 Rotary Table
ZCTZ-200 is suitable for industrial indexing, automation fixtures, CNC positioning, and servo-driven rotary systems that require stronger load support in a 200 frame size.
View Details

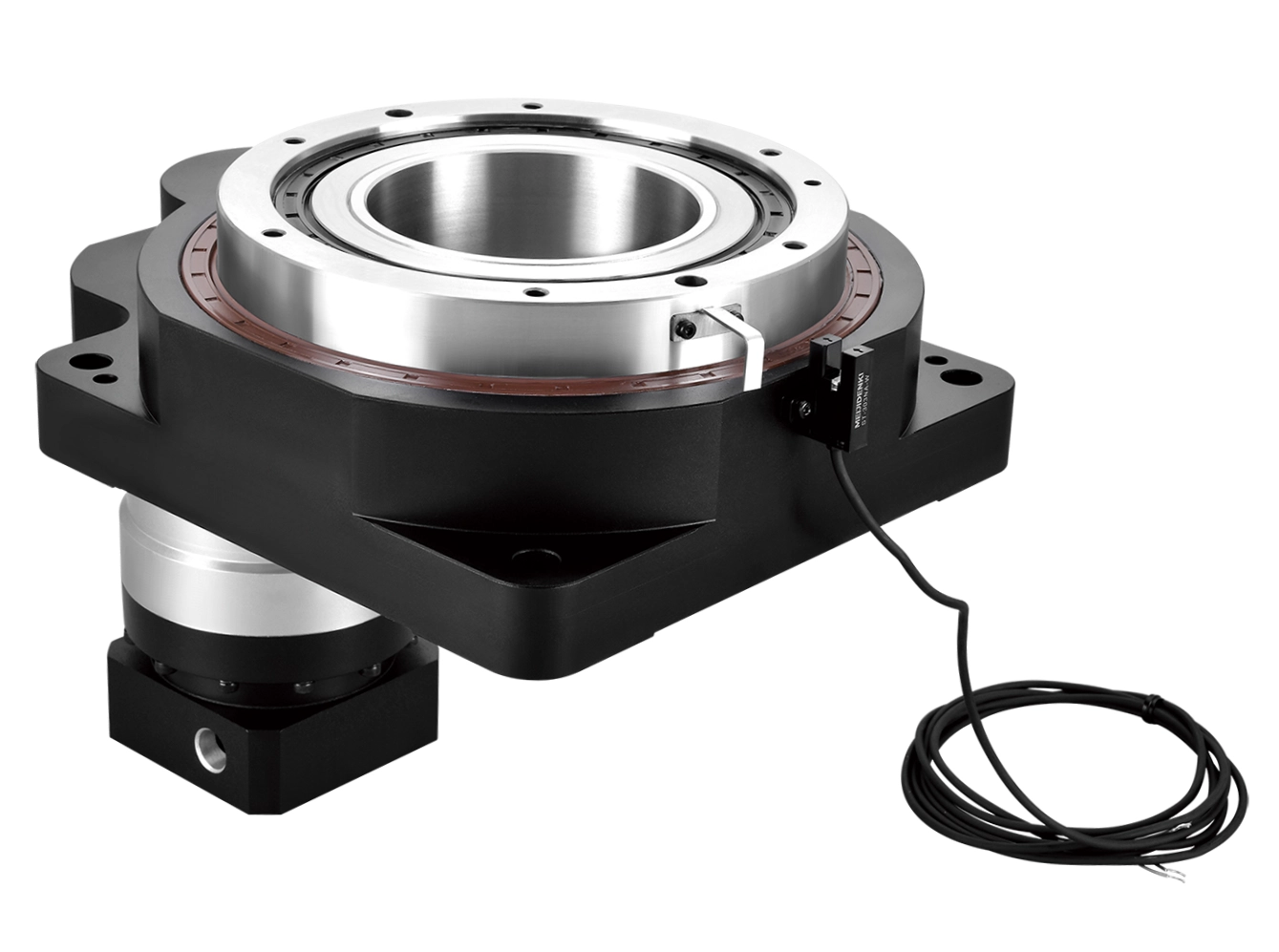

ZCTZ-280 Rotary Table
ZCTZ-280 is designed for higher load applications, larger fixture rotation, stronger moment support, and precision rotary positioning in demanding industrial systems.
View DetailsSeries Comparison Overview
This table gives visitors a quick comparison before entering the detailed model pages. For complete drawings, motor interface dimensions, and ordering code, users can click into ZCTZ-200 or ZCTZ-280.
| Item | ZCTZ-200 | ZCTZ-280 |
|---|---|---|
| Product Positioning | Heavy-duty hollow rotary table for 200 frame applications | Higher-load heavy-duty hollow rotary table for larger fixtures |
| Typical Servo Motor Range | 750–1500W | 1000–3000W |
| Available Ratio Range | L1: 20 / 25 / 35 / 50; L2: 100 / 200 / 250 / 350 / 500 | L1: 20 / 25 / 35 / 50; L2: 100 / 200 / 250 / 350 / 500 |
| Rated Output Torque | 200 N.m | 400 N.m |
| Allowable Axial Load | 6000 N | 13000 N |
| Torsional Rigidity | 60 N.m/arcmin | 90 N.m/arcmin |
| Typical Use | Indexing stations, CNC positioning, automation fixtures | Large fixture rotation, heavier indexing, demanding automation systems |
How to Select a ZCTZ Hollow Rotary Table
For heavy-duty rotary positioning, model selection should not depend only on frame size. Engineers should evaluate the load weight, fixture diameter, rotary inertia, required positioning accuracy, working cycle, rotation speed, and servo motor specification together.
Check Load and Moment
If the fixture is large or the load center is far from the rotating center, moment load becomes important. In this case, ZCTZ-280 may be more suitable than ZCTZ-200.
Confirm Ratio and Speed
Lower ratios are better for faster indexing, while higher ratios are often selected when stronger torque and stable positioning are required.
Match the Servo Motor
Motor shaft diameter, pilot diameter, mounting hole pitch, and screw size should be confirmed according to the actual servo motor drawing before ordering.
Typical Applications
ZCTZ heavy-duty hollow rotary tables are mainly used in automation systems where larger fixtures, stronger load support, and stable rotary positioning are required.
Heavy Indexing Stations
Used for multi-station indexing tables, rotary fixtures, and production lines requiring stable positioning under heavier working loads.
CNC Rotary Positioning
Suitable for CNC auxiliary rotary axes, machining fixtures, and workpiece positioning systems that need compact but strong rotary motion.
Industrial Automation
Applied in assembly equipment, inspection systems, transfer machines, and servo-driven rotary modules for industrial production.
Large Fixture Rotation
Designed for larger fixture platforms where axial load, moment load, rigidity, and repeatable positioning must be considered together.
