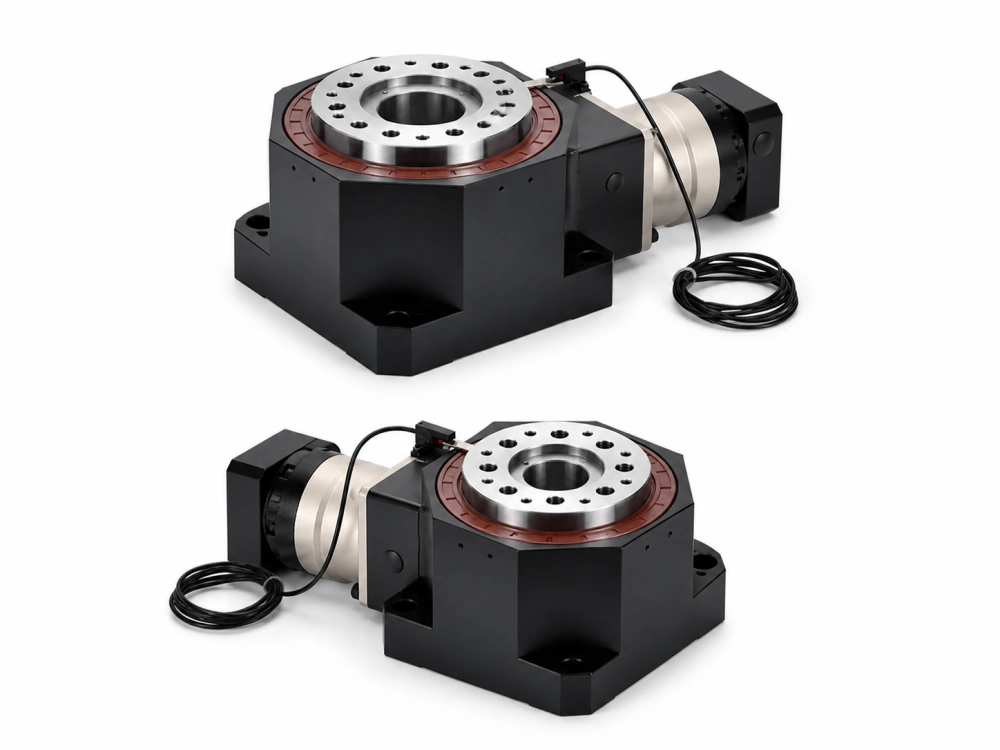

ZCM Series Right-Angle Hollow Rotary Table
The ZCM Series right-angle hollow rotary table is designed for servo-driven rotary positioning systems that require a hollow output platform, compact right-angle motor layout, high torque capacity, and flexible reduction ratio selection. With L1 and L2 ratio options, the ZCM Series is suitable for indexing tables, rotary fixtures, automation equipment, packaging machinery, and precision positioning systems that need stronger reduction capability in a compact structure.
Request a Quote View Hollow Rotary Table
Key Advantages of ZCM Series
Right-Angle Hollow Structure
Combines hollow output rotation with a compact side-mounted motor layout for space-saving machine design.
Wide Ratio Selection
Supports L1 and L2 reduction ratios for applications requiring different speed, torque, and positioning behavior.
High Torque Capacity
Designed for stable rotary positioning under demanding fixture load and indexing requirements.
Cross Roller Bearing
Integrated cross roller bearing structure supports axial load, radial load, and moment load in rotary systems.
ZCM Series Models

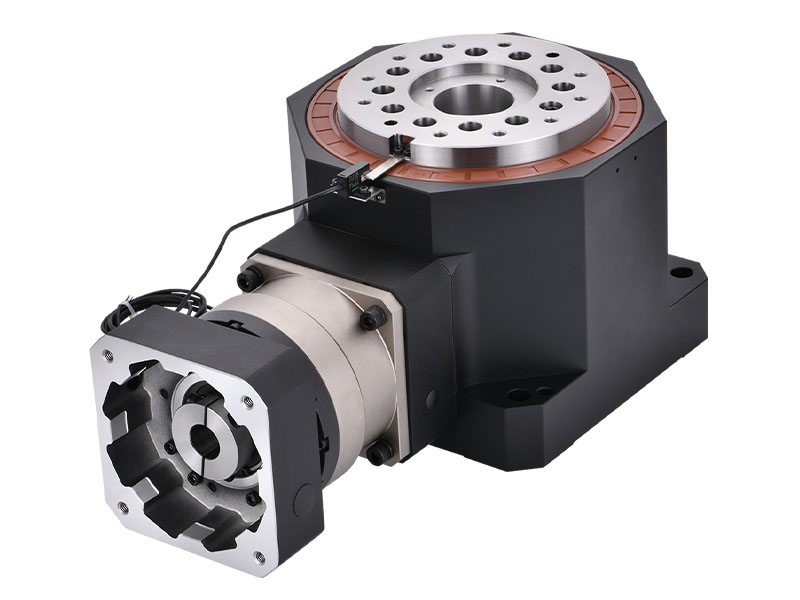

ZCM-130 Rotary Table
Designed for compact right-angle rotary positioning with L1 and L2 ratio options. Suitable for 200–400W servo motor applications and controlled indexing systems.
View ZCM-130

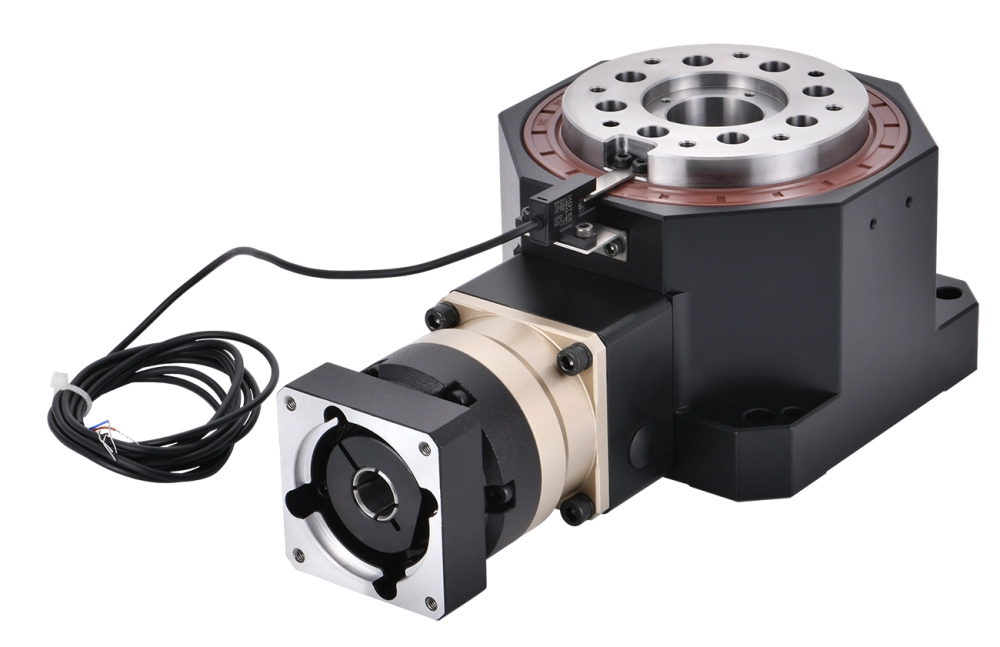

ZCM-180 Rotary Table
Built for higher torque transmission, 750–1500W servo motor matching, and automation systems requiring stronger rotary output in a right-angle layout.
View ZCM-180

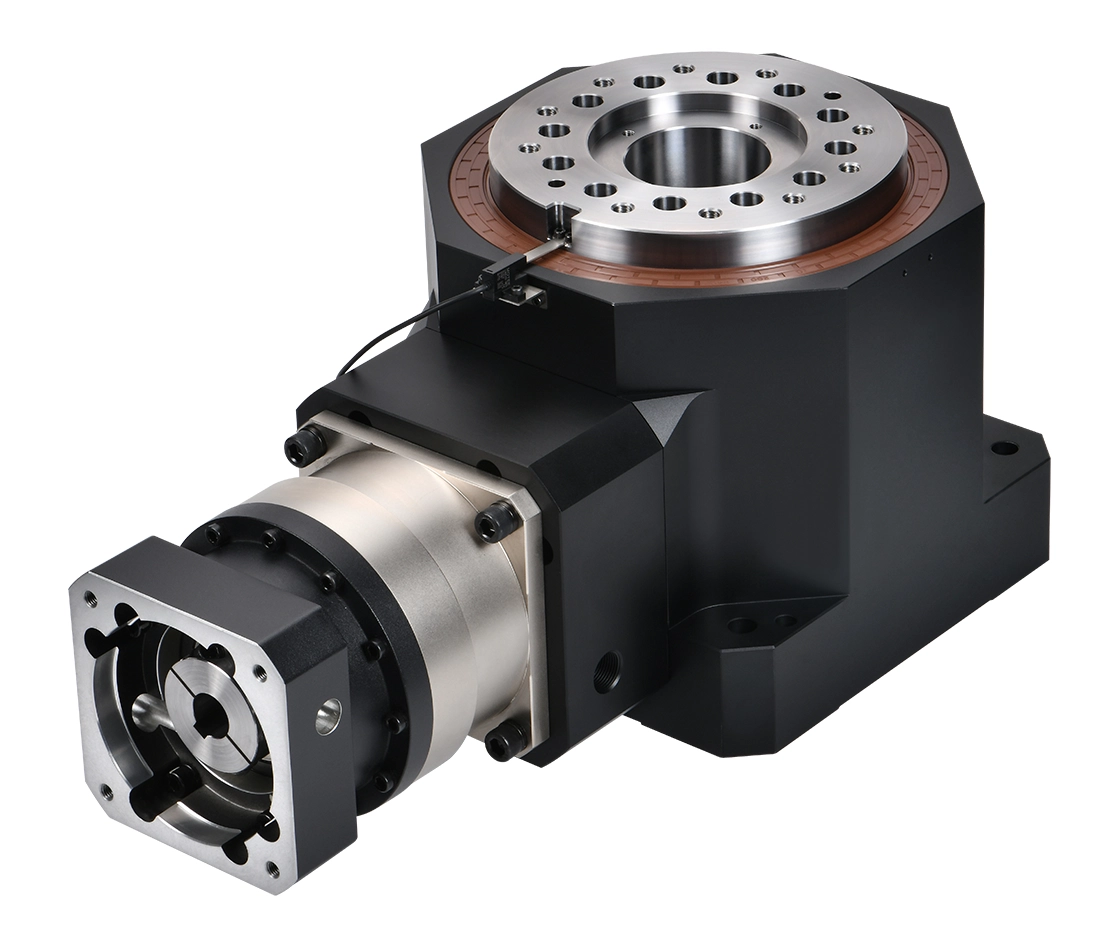

ZCM-260 Rotary Table
Suitable for high-load rotary positioning, large fixture integration, and 2000–5000W servo-driven systems with stronger rigidity and load capacity.
View ZCM-260Ordering Code Representation
Example ordering code: ZCM-130-30-14-50-70-M4. Move your mouse over each segment to understand the meaning.
Series
ZCM represents a right-angle hollow rotary table with side-mounted motor input.
Frame Size
Common frame sizes include 130, 180, 225, and 260 for different load and installation requirements.
Ratio Range
L1 ratios include 15 / 21 / 30 / 50. L2 ratios include 90 / 120 / 150 / 210 / 300.
Motor Interface
Motor shaft diameter, pilot diameter, mounting pitch, and screw size should be confirmed before ordering.
ZCM Series Technical Overview
| Item | ZCM130 | ZCM180 | ZCM260 |
|---|---|---|---|
| Bearing Structure | Cross roller bearing | Cross roller bearing | Cross roller bearing |
| Reduction Ratio | L1: 15/21/30/50 L2: 90/120/150/210/300 | L1: 15/21/30/50 L2: 90/120/150/210/300 | L1: 15/21/30/50 L2: 90/120/150/210/300 |
| Rated Output Torque | 110–150 N·m | 315–470 N·m | 1950–2950 N·m |
| Positioning Accuracy | L1 ≤1.5 arc-min L2 ≤3 arc-min | L1 ≤1.5 arc-min L2 ≤3 arc-min | L1 ≤2 arc-min L2 ≤4 arc-min |
| Repeated Positioning Accuracy | L1 ≤30 arc-sec L2 ≤60 arc-sec | L1 ≤30 arc-sec L2 ≤60 arc-sec | L1 ≤30 arc-sec L2 ≤60 arc-sec |
| Adapt to Servo Motor | 200–400W | 750–1500W | 2000–5000W |
| Allowable Axial Load | 7300 N | 13500 N | 29600 N |
| Allowable Radial Load | 7300 N | 13500 N | 29600 N |
| Design Load | 70 kg | 230 kg | 1000 kg |
| Torsional Rigidity | 25 N·m/arcmin | 45 N·m/arcmin | 175 N·m/arcmin |
| Protection Level | IP65 | IP65 | IP65 |
| Weight | 7 / 7.6 kg | 17 / 19 kg | 46 / 52 kg |
Typical Applications

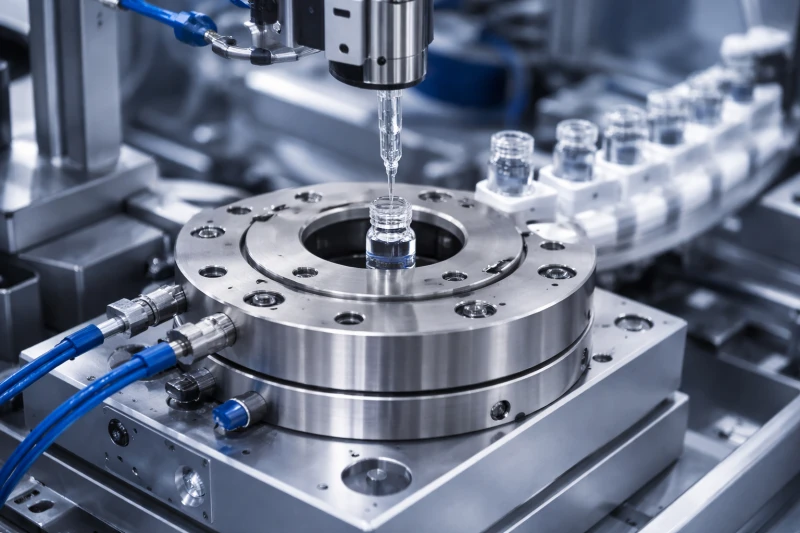

Automation Equipment
Used in rotary indexing systems, assembly equipment, feeding modules, and compact automation layouts.
View Automation
CNC Machinery
Suitable for rotary positioning, workpiece orientation, fixture rotation, and auxiliary motion units.
View CNC Machines
Packaging Machinery
Applied in indexing, labeling, filling, synchronized feeding, and rotary transfer mechanisms.
View PackagingRelated Hollow Rotary Table Series
ZCTK Series
Coaxial hollow rotary table series for precision indexing, inspection, and standard servo rotary positioning.
View ZCTK Series
ZCTR Series
Integrated corner hollow rotating platform for compact right-angle positioning and indexing applications.
View ZCTR Series
Hollow Rotary Table Series
Compare ZBT, ZCTK, ZCTR, ZCH, ZCM and other hollow rotary table options for automation systems.
View All SeriesNeed Help Selecting a ZCM Model?
Send your load weight, fixture size, motor model, ratio requirement, installation space, and positioning accuracy. Our team can help recommend the suitable ZCM right-angle hollow rotary table.
