ZCM-130 Right Angle Hollow Rotary Table
The ZCM-130 right angle hollow rotary table is designed for servo-driven rotary positioning systems that require a compact installation direction, hollow output platform, stable torque transmission, and controlled indexing performance. It is suitable for automation modules, inspection fixtures, compact packaging equipment, and rotary positioning units where motor space needs to be arranged at a right angle.
Request a Quote Back to ZCM Series
Key Features of ZCM-130
Right Angle Layout
Places the motor on the side to save axial installation space and improve machine layout flexibility.
Hollow Output Platform
Allows cables, air pipes, or tooling structures to pass through the center for cleaner integration.
Cross Roller Bearing
Supports stable rotation, radial load, axial load, and moment load in compact rotary systems.
Servo Positioning
Suitable for automated indexing, controlled rotation, inspection stations, and precision fixture movement.
Ordering Code Example
Example ordering code: ZCM-130-30-14-50-70-M4. Move your mouse over each code segment to see its meaning.
Frame Size
ZCM-130 is used for compact rotary positioning units requiring side-mounted motor installation.
Ratio Selection
L1 ratios support faster positioning. L2 ratios support stronger reduction and more controlled motion.
Motor Interface
14 / 50 / 70 / M4 define the motor shaft diameter, pilot diameter, hole pitch, and screw size.
Selection Note
Confirm motor model, fixture load, installation direction, and required ratio before ordering.
Technical Parameters
| Item | Unit | ZCM130-L1 | ZCM130-L2 |
|---|---|---|---|
| Bearing Structure | – | Cross roller bearing | |
| Reduction Ratio | i | 15 / 21 / 30 / 50 | 90 / 120 / 150 / 210 / 300 |
| Rated Output Torque | N.m | 150 / 110 | 150 |
| Maximum Output Torque | N.m | 3 times rated torque | |
| Positioning Accuracy | arc-min | ≤1.5 | ≤3 |
| Repeated Positioning Accuracy | arc-sec | ≤30 | ≤60 |
| Allowable Disk Speed | rpm | 200 intermittent operation | |
| Adapt to Servo Motor | W | 200–400 | |
| Suitable for Stepping Motor | – | 57 stepper | |
| Allowable Axial Load | N | 7300 | |
| Allowable Radial Load | N | 7300 | |
| Design Load | kg | 70 | |
| Allowable Moment of Inertia | N.m | 50 | |
| Torsional Rigidity | N.m/arcmin | 25 | |
| Overturning Moment | N.m | 520 | |
| Accuracy Life | h | 20000h intermittent operation | |
| Protection Level | IP | 65 | |
| Lubrication Method | – | Long-term lubrication | |
| Installation Method | – | Arbitrary | |
| Concentricity of Rotating Platform | mm | ≤0.01 | |
| Parallelism of Rotating Platform | mm | ≤0.01 | |
| Transmission Efficiency | % | 95 | 90 |
| Noise | dB | ≤57 | ≤57 |
| Weight | kg | 7 | 7.6 |

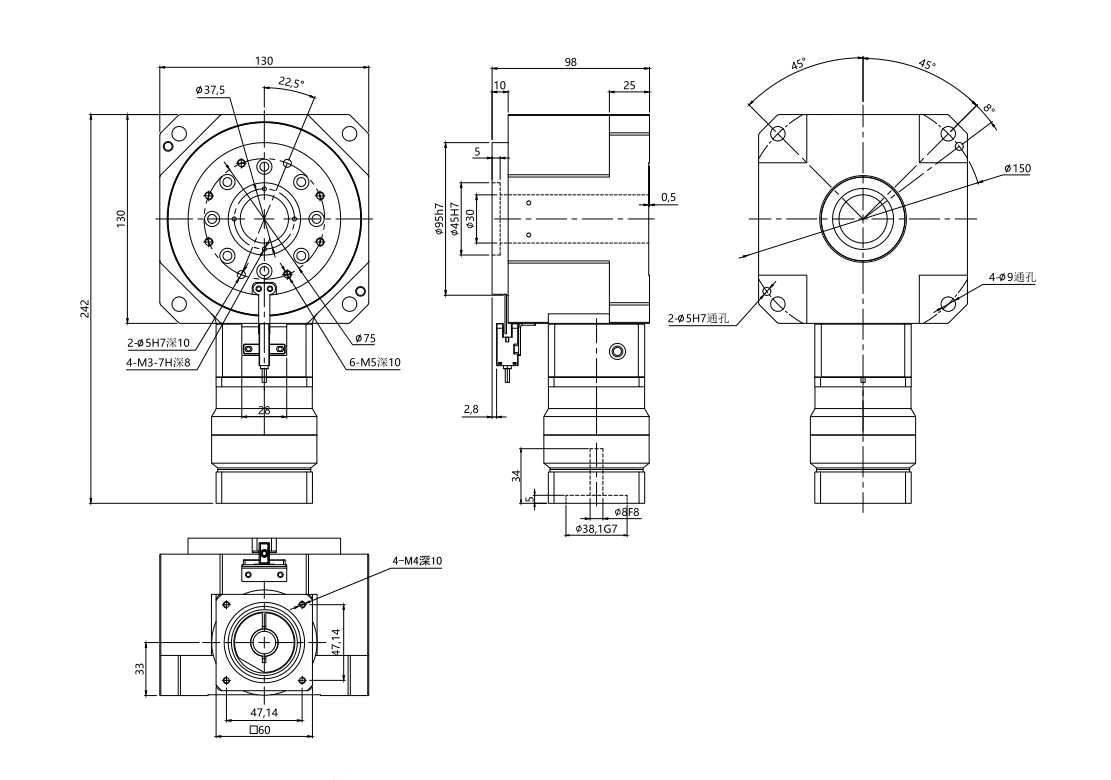

Outline Dimensional Drawing
Select a configuration below to view the corresponding outline drawing. Replace the image links after uploading your final drawing images.
Typical Applications
Compact Automation Modules
Used in compact assembly equipment, indexing units, rotary fixtures, and servo-driven positioning modules.
View Automation
Inspection Fixtures
Suitable for inspection equipment, measuring platforms, and testing fixtures requiring controlled rotary motion.
View Applications
Compact Packaging Equipment
Applied in small feeding, labeling, indexing, and synchronized compact packaging motion systems.
View PackagingRelated Products
ZCM-180 Rotary Table
Higher torque right-angle hollow rotary table for stronger servo positioning and industrial fixture applications.
View ZCM-180
ZCM-260 Rotary Table
Heavy-duty ZCM model for large load, high torque, and strong right-angle rotary positioning systems.
View ZCM-260

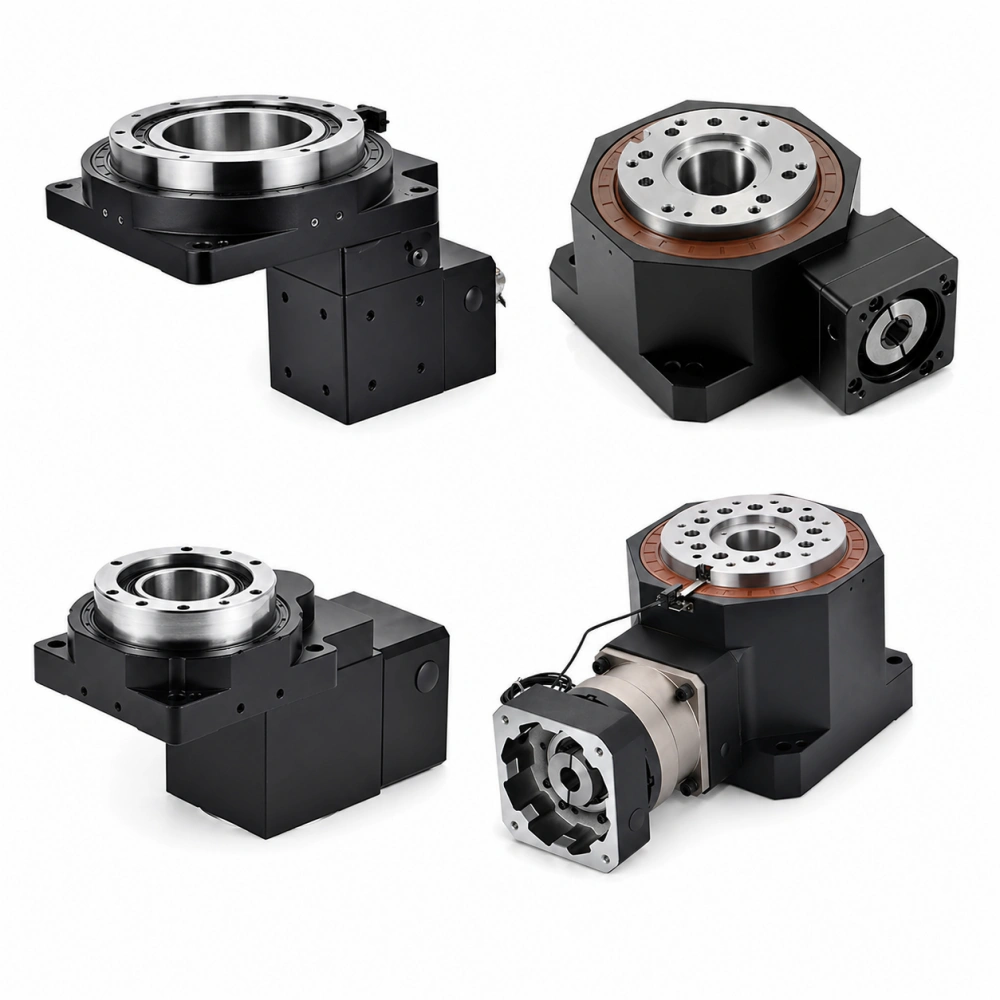

Hollow Rotary Table Overview
Compare ZBT, ZCTK, ZCTR, ZCH, and ZCM Series hollow rotary table options for different rotary positioning applications.
View All Rotary TablesNeed Help Selecting ZCM-130?
Send your motor model, load weight, fixture size, ratio requirement, and installation space. Our team can help confirm whether ZCM-130 is suitable for your right-angle rotary positioning application.
