ZCTR-130 Corner Hollow Rotary Table
The ZCTR-130 corner hollow rotary table is a medium-size integrated rotary platform for automation systems requiring stronger load capacity than ZCTR-85 while keeping a compact right-angle installation layout. It is suitable for assembly fixtures, inspection stations, packaging equipment, and rotary positioning modules that need stable motion in limited machine space.
Request a Quote Back to ZCTR Series
Key Features of ZCTR-130
Medium-Load Capacity
Supports larger fixtures and stronger axial load requirements than compact ZCTR-85 applications.
Corner Integrated Layout
The right-angle structure helps reduce machine length and supports compact equipment design.
Stable Indexing Motion
Designed for repeated indexing, fixture rotation, and servo-driven positioning in automation systems.
57–86 Stepper Matching
Compatible with 200–400W servo motors and 57–86 stepper motor installation requirements.
Ordering Code Example
Example ordering code: ZCTR-130-20-14-50-70-M4. Move your mouse over each segment to see the meaning of the code.
Frame Size
ZCTR-130 is positioned for medium-size fixtures, stronger indexing loads, and compact right-angle automation layouts.
Ratio Options
Available reduction ratios include 20, 30, and 50 for balancing torque output and rotary speed.
Motor Interface
The 14 / 50 / 70 / M4 values describe motor shaft diameter, pilot diameter, hole pitch, and screw size.
Selection Note
Confirm fixture weight, load center, motor model, required ratio, and installation direction before ordering.
Technical Parameters
The following data is for ZCTR130 selection. Compared with ZCTR-85, this model is more suitable for medium-load rotary positioning, larger fixtures, and stronger indexing systems.
| Item | Unit | ZCTR130 |
|---|---|---|
| Bearing Structure | – | Cross roller bearing |
| Reduction Ratio | – | 20 / 30 / 50 |
| Rated Output Torque | N·m | 78 |
| Maximum Output Torque | N·m | 3 times rated torque |
| Positioning Accuracy | arc-min | ≤2 |
| Repeated Positioning Accuracy | arc-sec | ≤30 |
| Allowable Disk Speed | rpm | 200, intermittent operation |
| Adapt to Servo Motor | W | 200–400 |
| Suitable for Stepping Motor | – | 57–86 stepper |
| Allowable Axial Load | N | 2000 |
| Allowable Moment of Inertia | N·m | 50 |
| Torsional Rigidity | N·m/arcmin | 19 |
| Backlash | – | No backlash, adjustable structure |
| Accuracy Life | h | 30000 h, intermittent operation |
| Protection Level | IP | 50 |
| Lubrication Method | – | Long-term lubrication |
| Installation Method | – | Arbitrary |
| Concentricity of Rotating Platform | mm | ≤0.01 |
| Parallelism of Rotating Platform | mm | ≤0.013 |
| Transmission Efficiency | % | 90 |
| Noise | dB | ≤60 |
| Weight | kg | 3.4 |
| Design Load | kg | 55 |

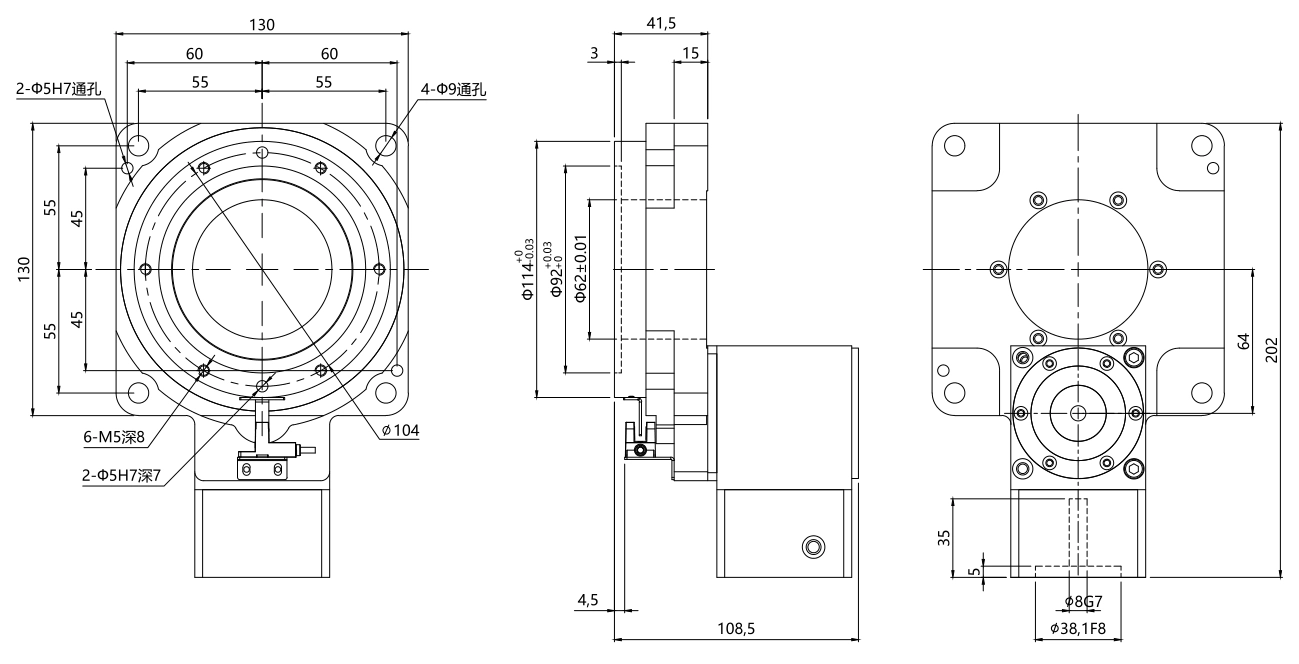

Outline Dimensional Drawing
Select the motor interface option below to view the corresponding outline dimensional drawing. The drawing helps confirm installation envelope, motor interface, mounting hole positions, and fixture clearance.
