ZCTR-200 Corner Hollow Rotary Table
The ZCTR-200 corner hollow rotary table is designed for stronger load support, larger fixture positioning, and compact right-angle rotary installation. Compared with ZCTR-85 and ZCTR-130, it is more suitable for heavier indexing modules, medium-large automation fixtures, and equipment requiring higher rigidity in limited installation space.
Request a Quote Back to ZCTR Series
Key Features of ZCTR-200
Higher Load Support
Designed for heavier fixtures and stronger rotary positioning requirements than smaller ZCTR models.
Right-Angle Integration
Corner structure helps shorten equipment layout and improve space utilization in automation systems.
Improved Rigidity
Higher torsional rigidity supports more stable positioning under medium-heavy operating conditions.
Fixture Positioning
Suitable for rotary fixtures, indexing equipment, and automation modules with larger load requirements.
Ordering Code Example
Example ordering code: ZCTR-200-20-14-50-70-M4. Because the final ordering data is still being confirmed, the code below is used as a temporary reference based on the ZCTR structure.
Frame Size
ZCTR-200 is positioned for larger fixtures and stronger corner rotary positioning applications.
Ratio Note
Final ratio options should be confirmed with the official drawing or motor matching data.
Motor Interface
Motor shaft, pilot diameter, hole pitch, and screw size should be confirmed before production.
Selection Focus
Confirm load weight, fixture size, mounting direction, and working cycle before final model selection.
Technical Parameters
The following data is temporarily adjusted from the ZCTR-130 structure according to the current ZCTR-200 reference values. Final technical data should be confirmed after the official specification is available.
| Item | Unit | ZCTR200 |
|---|---|---|
| Bearing Structure | – | Cross roller bearing |
| Reduction Ratio | – | To be confirmed |
| Rated Output Torque | N·m | 105 |
| Maximum Output Torque | N·m | 3 times rated torque |
| Positioning Accuracy | arc-min | ≤2 |
| Repeated Positioning Accuracy | arc-sec | ≤30 |
| Allowable Disk Speed | rpm | 200, intermittent operation |
| Adapt to Servo Motor | W | To be confirmed |
| Suitable for Stepping Motor | – | To be confirmed |
| Allowable Axial Load | N | 3000 |
| Allowable Moment of Inertia | N·m | 70 |
| Torsional Rigidity | N·m/arcmin | 29 |
| Backlash | – | No backlash, adjustable structure |
| Accuracy Life | h | 30000 h, intermittent operation |
| Protection Level | IP | 50 |
| Lubrication Method | – | Long-term lubrication |
| Installation Method | – | Arbitrary |
| Concentricity of Rotating Platform | mm | ≤0.01 |
| Parallelism of Rotating Platform | mm | ≤0.013 |
| Transmission Efficiency | % | 90 |
| Noise | dB | ≤60 |
| Weight | kg | 4.2 |
| Design Load | kg | 75 |

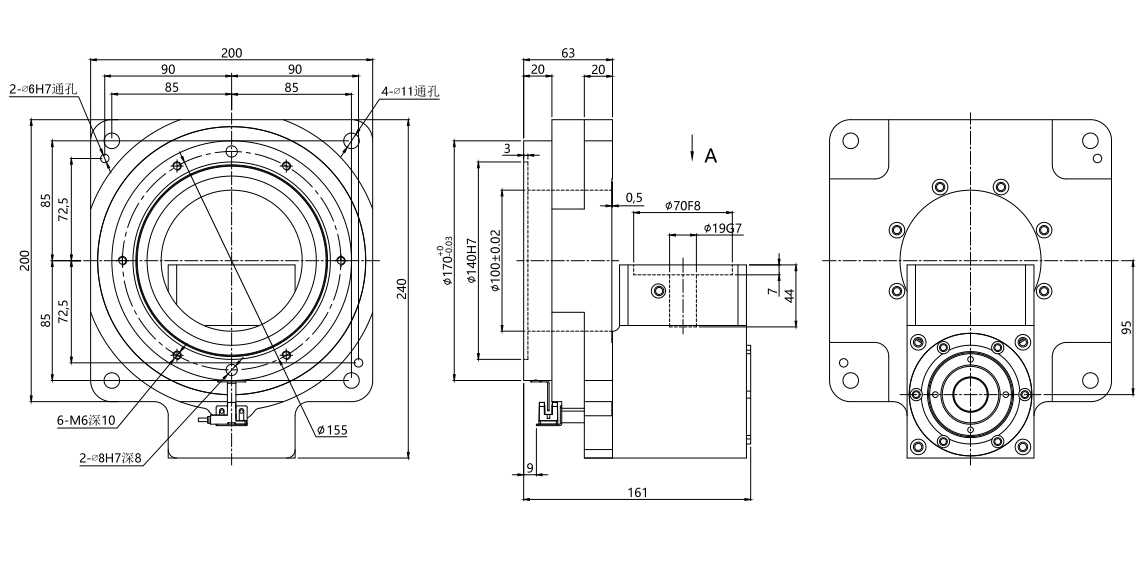

Outline Dimensional Drawing
The current drawing area uses temporary reference images. Replace the URLs below after the official ZCTR-200 drawings are available.
Typical Applications
Automation Fixture Positioning
Used for medium-large fixtures where corner installation saves space while supporting stable rotary motion.
View Automation
Rotary Workholding Modules
Suitable for workpiece orientation, fixture rotation, and indexing modules with stronger load requirements.
View CNC Machines
Indexing and Packaging Systems
Applied in rotary feeding, indexing, labeling, and synchronized motion systems for compact equipment layouts.
View PackagingRelated Products
ZCTR-85 Rotary Table
Compact corner hollow rotary table for light-load indexing and small automation modules.
View ZCTR-85
ZCTR-130 Rotary Table
Medium-size model for fixture positioning, automated assembly, and moderate-load rotary indexing.
View ZCTR-130
ZCTR Series Overview
Return to the ZCTR Series page to compare ZCTR-85, ZCTR-130, and ZCTR-200 models.
Back to ZCTR SeriesNeed Help Selecting ZCTR-200?
Send your fixture size, load weight, motor model, ratio requirement, installation space, and working cycle. Our team can help confirm whether ZCTR-200 is suitable for your higher-load corner rotary application.
