ZCTZ-200 Heavy-Duty Hollow Rotary Table
The ZCTZ-200 heavy-duty hollow rotary table is designed for servo-driven rotary positioning systems that require a stronger hollow output platform, stable indexing accuracy, and reliable load support. It is suitable for CNC rotary positioning, heavy indexing stations, automation fixtures, inspection equipment, and production systems where a 200-frame hollow rotary unit is required.
Key Features of ZCTZ-200
Heavy-Duty 200 Frame
Built for applications requiring stronger load support than compact rotary units, while keeping a practical installation footprint.
Hollow Output Platform
The hollow center supports cable routing, air pipe routing, fixture positioning, and cleaner machine integration.
L1 and L2 Ratio Options
ZCTZ200-L1 and ZCTZ200-L2 provide different speed and torque combinations for servo-driven indexing applications.
Stable Rotary Accuracy
Cross roller bearing structure helps maintain stable positioning, rigidity, and repeatable motion under industrial operating conditions.
Ordering Code Example
Example ordering code: ZCTZ-200-50-19-70-90-M6. Move your mouse over each code segment to understand the meaning. Final motor interface dimensions should be confirmed according to the selected servo motor and installation requirements.
Frame Size
ZCTZ-200 is selected for 200-frame heavy-duty hollow rotary positioning systems with moderate-to-high fixture load requirements.
Ratio Selection
L1 ratios support faster indexing. L2 ratios provide higher reduction for stronger output torque and more stable positioning.
Motor Interface
Motor shaft diameter, pilot diameter, hole pitch, and screw size must match the actual servo motor drawing.
Selection Note
Before ordering, confirm load weight, fixture diameter, rotation speed, positioning accuracy, and duty cycle.
Technical Parameters
The following data is for ZCTZ-200 model selection reference. Final selection should be confirmed according to actual load, moment load, motor specification, ratio, and installation space.
| Item | Unit | ZCTZ200-L1 | ZCTZ200-L2 |
|---|---|---|---|
| Bearing structure | – | Cross roller bearing | |
| Reduction ratio | i | 20 / 25 / 35 / 50 | 100 / 200 / 250 / 350 / 500 |
| Rated output torque | N.m | 200 | |
| Output torque | N.m | 3 Times rated torque | |
| Positioning accuracy | arc-min | ≤2 | ≤4 |
| Repeated positioning accuracy | arc-sec | ≤30 | ≤60 |
| Allowable disk speed | rpm | 200, intermittent operation | |
| Adapt to servo motor | W | 750–1500 | |
| Suitable for stepping motor | – | 86–110 Stepper | |
| Allowable axial load | N | 6000 | |
| Allowable moment of inertia | N.m | 200 | |
| Torsional rigidity | N.m/arcmin | 60 | |
| Overturning moment | N.m | 2100 | |
| Accuracy life | h | 30000h, intermittent operation | |
| Protection level | IP | 50 | |
| Lubrication method | – | Long-term lubrication | |
| Installation method | – | Arbitrary | |
| Concentricity of rotating platform | mm | ≤0.01 | |
| Parallelism of rotating platform | mm | ≤0.02 | |
| Transmission efficiency | % | 95 | 90 |
| Noise | db | ≤63 | |
| Weight | kg | 12 | 13.6 |
| Design load | kg | 200 | |
Outline Dimensional Drawing
Select a drawing configuration below to review the corresponding ZCTZ-200 outline dimensional reference. Replace the image URLs after uploading your final drawing images to WordPress.

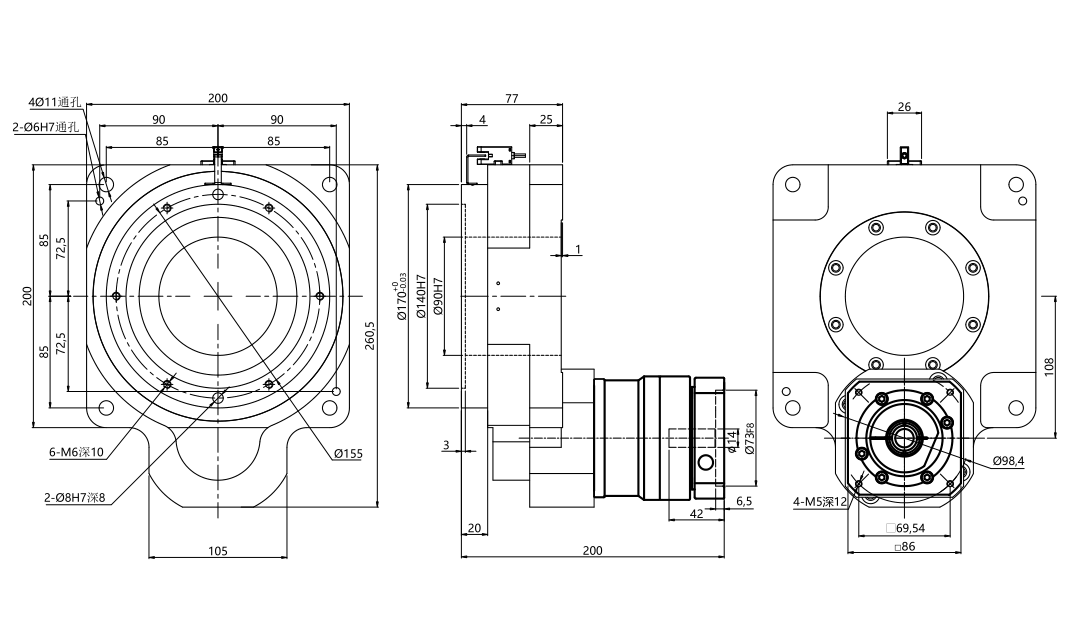

ZCTZ200-L1 Outline Drawing
ZCTZ200-L1 drawing is used for 750W servo interface reference. Final dimensions should be confirmed before production.

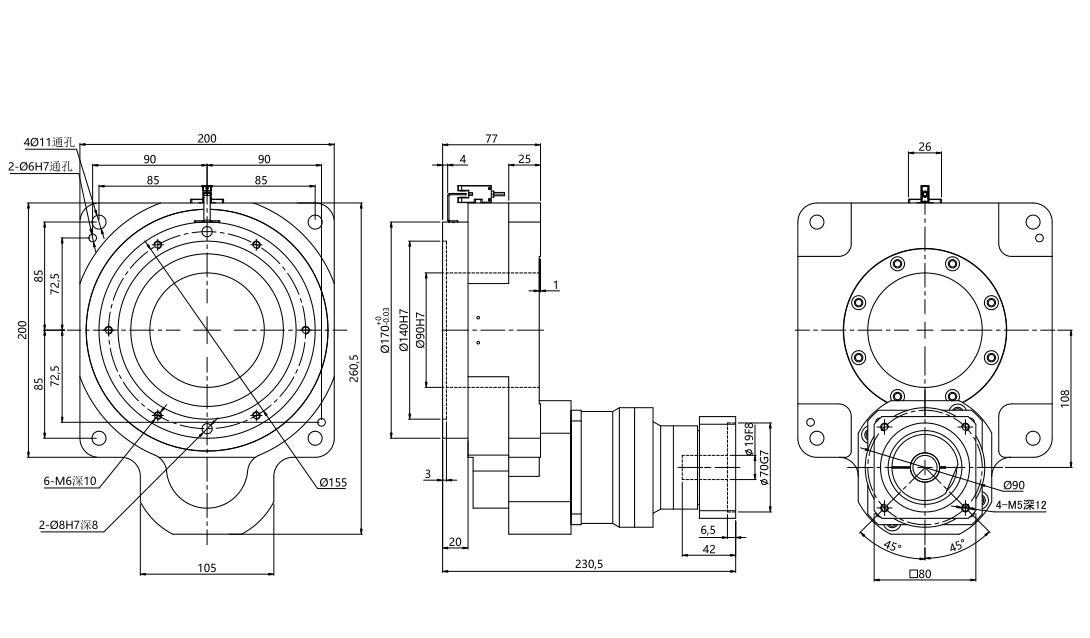

ZCTZ200-L2 Outline Drawing
ZCTZ200-L2 drawing is used for 750W servo interface reference. Final dimensions should be confirmed according to motor model.
Typical Applications
Heavy Indexing Stations
Used in multi-station indexing systems where stable rotation, stronger fixture support, and repeatable position control are required.
View Automation ApplicationsCNC Rotary Positioning
Suitable for CNC auxiliary rotary positioning, machining fixtures, and workpiece indexing systems with a hollow center requirement.
View CNC ApplicationsIndustrial Assembly Fixtures
Applied in production equipment, inspection fixtures, and servo-driven rotary modules that require stronger mechanical support.
View Robotics ApplicationsRelated Products
Need Help Selecting ZCTZ-200?
Send your motor model, load weight, fixture size, rotation speed, ratio requirement, and installation space. Our team can help confirm whether ZCTZ-200-L1 or ZCTZ-200-L2 is suitable for your rotary positioning application.
