ZCTZ-280 Heavy-Duty Hollow Rotary Table
The ZCTZ-280 heavy-duty hollow rotary table is designed for servo-driven rotary systems requiring higher load capacity, stronger moment support, and a larger hollow output platform. Compared with smaller frame rotary tables, ZCTZ-280 is better suited for heavy fixtures, CNC auxiliary rotary axes, automated indexing stations, and industrial positioning equipment requiring stable operation under larger loads.
Key Features of ZCTZ-280
Heavy Load Platform
Designed for larger fixtures, stronger axial load requirements, and demanding industrial rotary positioning applications.
Large Hollow Center
The hollow output structure allows cable, air pipe, and fixture routing through the center for cleaner equipment integration.
Strong Moment Support
Higher allowable moment of inertia and overturning moment help support stable indexing under heavier fixture conditions.
Servo Motor Matching
Compatible with 1000–3000W servo motor applications for high-load automation and CNC rotary positioning systems.
Ordering Code Example
Example ordering code: ZCTZ-280-50-24-110-145-M8. Move your mouse over each code segment to understand the meaning. Final motor interface dimensions should be confirmed according to the selected servo motor and installation requirements.
Frame Size
ZCTZ-280 is selected when the application needs a larger platform, stronger load support, and more stable heavy-duty positioning.
Ratio Selection
L1 ratios are suitable for faster indexing. L2 ratios help increase output torque for heavier rotary motion requirements.
Motor Interface
Motor shaft diameter, pilot diameter, hole pitch, and screw size should match the actual servo motor drawing.
Selection Note
Confirm load weight, fixture diameter, inertia, rotation speed, ratio, motor power, and installation direction before ordering.
Technical Parameters
The following data is for ZCTZ-280 model selection reference. Final selection should be confirmed according to actual load, moment load, motor specification, ratio, accuracy requirement, and installation space.
| Item | Unit | ZCTZ280-L1 | ZCTZ280-L2 |
|---|---|---|---|
| Bearing structure | – | Cross roller bearing | |
| Reduction ratio | i | 20 / 25 / 35 / 50 | 100 / 200 / 250 / 350 / 500 |
| Rated output torque | N.m | 400 | |
| Output torque | N.m | 3 Times rated torque | |
| Positioning accuracy | arc-min | ≤2 | ≤4 |
| Repeated positioning accuracy | arc-sec | ≤30 | ≤60 |
| Allowable disk speed | rpm | 150, intermittent operation | |
| Adapt to servo motor | W | 1000–3000 | |
| Suitable for stepping motor | – | 110–130 Stepper | |
| Allowable axial load | N | 13000 | |
| Allowable moment of inertia | N.m | 400 | |
| Torsional rigidity | N.m/arcmin | 90 | |
| Overturning moment | N.m | 4300 | |
| Accuracy life | h | 20000h, intermittent operation | |
| Protection level | IP | 50 | |
| Lubrication method | – | Long-term lubrication | |
| Installation method | – | Arbitrary | |
| Concentricity of rotating platform | mm | ≤0.015 | |
| Parallelism of rotating platform | mm | ≤0.03 | |
| Transmission efficiency | % | 95 | 90 |
| Noise | db | ≤67 | |
| Weight | kg | 30 | 33 |
| Design load | kg | 400 | |
Outline Dimensional Drawing
Select a drawing configuration below to review the corresponding ZCTZ-280 outline dimensional reference. Replace the image URLs after uploading your final drawing images to WordPress.

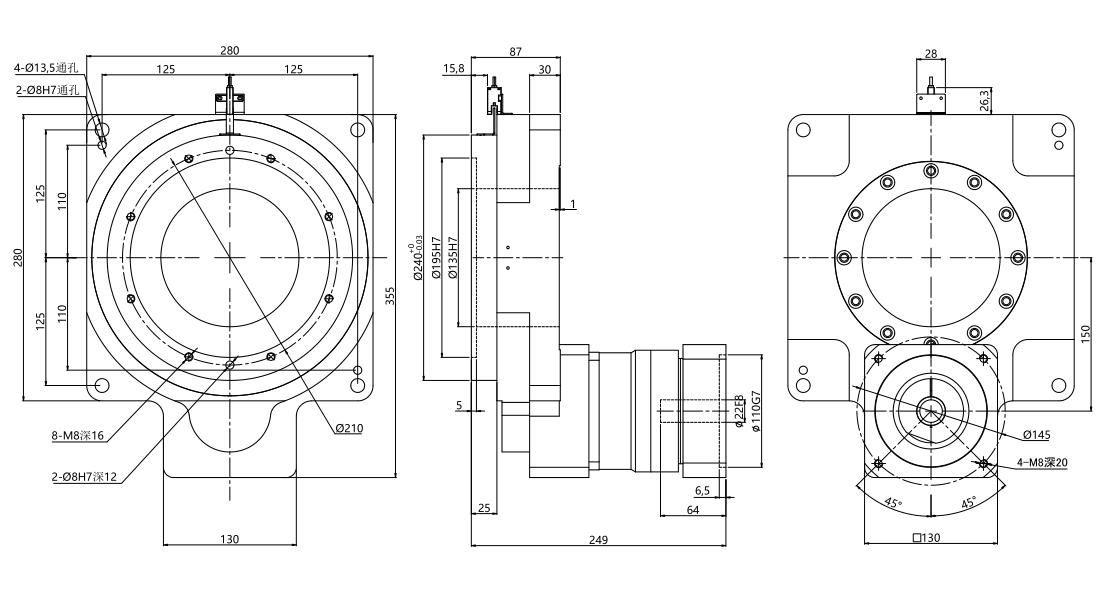

ZCTZ280-L1 Outline Drawing
ZCTZ280-L1 drawing is used for 1KW servo interface reference. Final dimensions should be confirmed before production.
ZCTZ280-L2 Outline Drawing
ZCTZ280-L2 drawing is used for 1KW servo interface reference. Final dimensions should be confirmed according to the selected motor model.
Typical Applications
Heavy Rotary Indexing
Used in rotary indexing stations where larger fixtures, stronger axial load support, and stable repeatable positioning are required.
View Automation ApplicationsCNC Auxiliary Rotary Axis
Suitable for CNC machining fixtures, rotary positioning units, and equipment layouts requiring a large hollow center.
View CNC ApplicationsHeavy Fixture Positioning
Applied in industrial assembly, inspection platforms, and production systems that require high rigidity and controlled rotary motion.
View Robotics ApplicationsRelated Products
Need Help Selecting ZCTZ-280?
Send your motor model, load weight, fixture diameter, moment load, ratio requirement, rotation speed, and installation structure. Our team can help confirm whether ZCTZ-280-L1 or ZCTZ-280-L2 is suitable for your heavy-duty rotary positioning application.
