Planetary Gearset Explained: Sun Gear, Planet Gears, Ring Gear and Carrier
A planetary gearset is the internal gear arrangement that gives a planetary gearbox its compact size, torque density and smooth power transmission.
It is not the same thing as a complete gearbox.
The gearset is the working gear mechanism inside the reducer. The complete planetary gearbox also includes the housing, bearings, input adapter, output shaft or flange, seals, lubrication, mounting interface and assembly precision.
This distinction matters because many buyers search for a planetary gearset when they are actually trying to understand how a planetary gearbox works, how the internal parts transmit torque, or why this design is widely used in servo automation.
This article explains the main parts of a planetary gearset, how power moves through the gear arrangement, what affects ratio, and how this internal structure becomes useful in precision planetary gearboxes for automation, CNC machinery, robotics, packaging equipment and motion control systems.

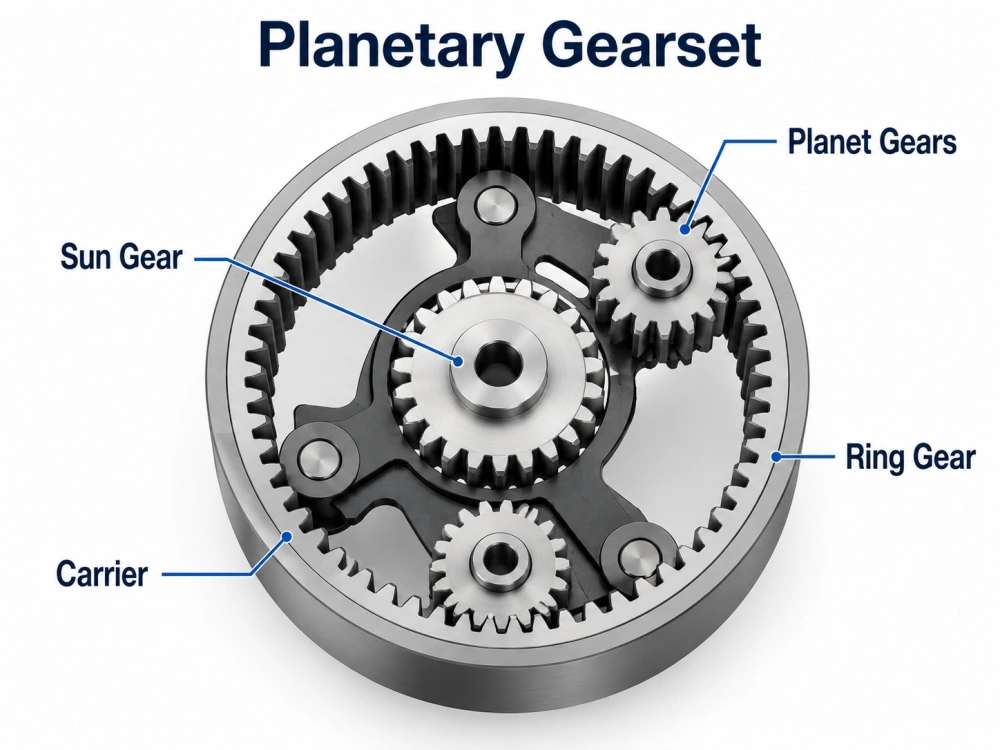

What Is a Planetary Gearset?
A planetary gearset is a compact gear system made of several gears arranged around a central gear.
The central gear is called the sun gear. Around it, several planet gears rotate. These planet gears also mesh with an outer ring gear. The planet gears are held by a planet carrier, which transmits motion to or from the output side depending on the design.
This arrangement is also called an epicyclic gear system in engineering references.
The reason it is called “planetary” is easy to understand: the planet gears rotate around the sun gear in a way that resembles planets moving around the sun.
In industrial gearboxes, this structure is useful because several planet gears can share the load at the same time. That is one reason planetary reducers can provide high torque capacity in a relatively small body.
The Four Main Parts of a Planetary Gearset
A basic planetary gearset has four main parts:
- Sun gear
- Planet gears
- Ring gear
- Planet carrier
Each part has a different mechanical role. If one part is fixed, one part is driven, and another part becomes the output, the gearset can produce different speed and torque relationships.
Sun Gear
The sun gear sits at the center of the gearset.
In many planetary gearbox designs, the motor input drives the sun gear. Because the sun gear is located in the center, it can distribute power to multiple planet gears around it.
The size and tooth count of the sun gear strongly affect the gear ratio and internal load distribution.
Planet Gears
Planet gears mesh with both the sun gear and the ring gear.
Most planetary gearsets use several planet gears instead of only one. This allows the load to be shared across multiple contact points.
For precision planetary gearboxes, the quality of the planet gears, gear grinding, tooth profile, bearing support and carrier accuracy all affect backlash, noise, torque capacity and service life.
Ring Gear
The ring gear is the outer internal gear surrounding the planet gears.
It has teeth on the inside, not the outside. The planet gears roll along the inside of the ring gear while also meshing with the sun gear.
In many reduction gearboxes, the ring gear is fixed inside the housing. This fixed ring structure helps the gearset convert high motor speed into lower output speed and higher usable torque.
Planet Carrier
The planet carrier holds the planet gears in position and transmits their combined motion.
In many reducers, the carrier becomes the output part. Because it collects the load from several planet gears, carrier rigidity is important for torque transmission and motion accuracy.
A weak carrier structure can reduce stiffness and affect repeatability, especially in servo-driven applications with frequent acceleration and reversing.
How Power Moves Through a Planetary Gearset
A common reduction arrangement works like this:
- The motor drives the sun gear.
- The sun gear drives the planet gears.
- The planet gears roll against the fixed ring gear.
- The planet carrier rotates at reduced speed.
- The carrier sends torque to the output shaft or flange.
This creates speed reduction and torque multiplication in a compact coaxial structure.
For a simple fixed-ring planetary reducer, the output speed is lower than the input speed. At the same time, the output torque increases according to the ratio and the actual gearbox efficiency.
This is the core reason planetary gearsets are widely used in precision reducers.
Why Planetary Gearsets Are Compact
A planetary gearset is compact because the gears are arranged around the same centerline.
Instead of placing several gears in a long side-by-side train, the sun gear, planet gears and ring gear work inside one circular structure.
This gives the gearset several advantages:
- Shorter axial length compared with some traditional gear trains
- High torque density
- Good load sharing through multiple planet gears
- Coaxial input and output layout
- Good suitability for servo motor connection
These advantages explain why planetary gearboxes are common in compact automation equipment, CNC axes, robot auxiliary axes, packaging machinery and precision positioning systems.
Planetary Gearset Ratio: A Simple Explanation
The ratio of a planetary gearset depends on which member is fixed, which member is input, and which member is output.
In many industrial planetary reducers, the ring gear is fixed, the sun gear is driven by the motor, and the carrier becomes the output.
In that case, the ratio is related to the number of teeth on the ring gear and the sun gear.
A simple fixed-ring explanation is:
Gear ratio = 1 + ring gear teeth ÷ sun gear teeth
This is a useful basic explanation, but real gearbox selection should not rely only on this formula.
A complete gearbox also needs efficiency, backlash, torque capacity, bearing support, input speed, lubrication, thermal behavior and assembly accuracy to be checked.
For deeper gearbox ratio selection, see:
Gear Reducer Ratio Mistakes That Affect Machine Performance
Compound Planetary Gearsets and Multistage Gearboxes
Some systems use more than one planetary gearset.
When two or more gearsets are connected in sequence, the gearbox can achieve higher total reduction ratio. This is often called a two-stage or multistage planetary gearbox.
For example, one gearset may provide the first reduction stage, and another gearset may provide the second stage. The total ratio is produced by multiplying the stage ratios.
However, adding stages also changes the gearbox design.
It may increase:
- Overall length
- Internal friction
- Efficiency loss
- Heat generation
- Backlash accumulation risk
This is why multistage design should be selected only when the required ratio, torque and application conditions justify the extra stages.
For more detail about 2-stage and 3-stage structures, see:
Multistage Planetary Gearbox Selection Guide

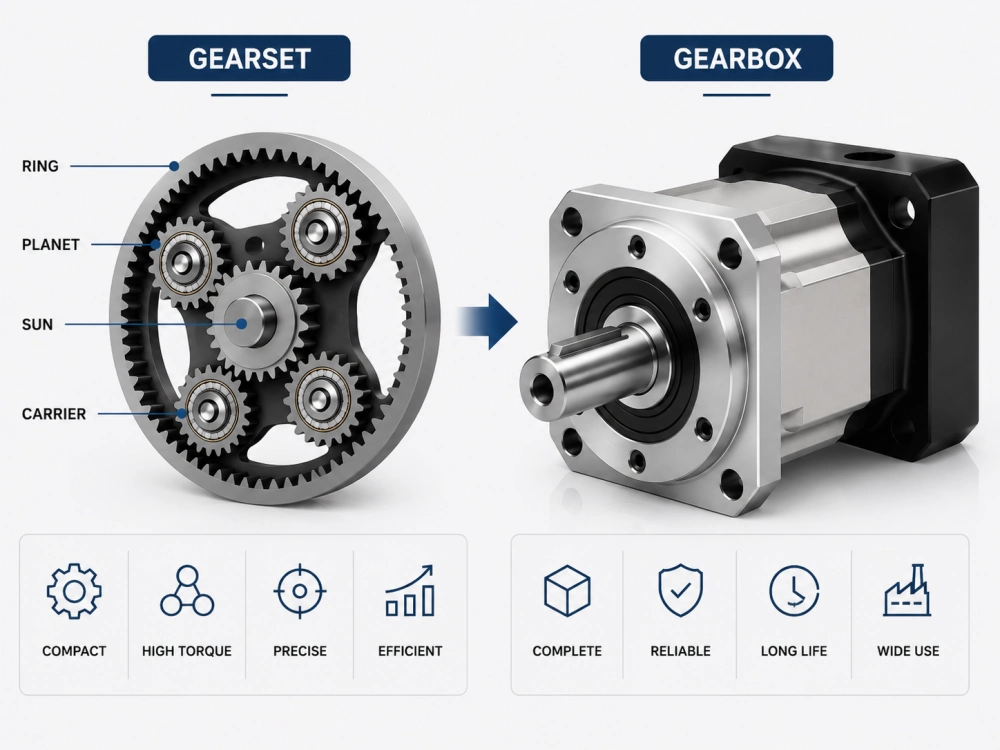

Planetary Gearset vs Complete Planetary Gearbox
A planetary gearset is only the internal gear mechanism.
A complete planetary gearbox is the finished industrial product built around that mechanism.
This difference is important for buyers.
| Item | Planetary Gearset | Complete Planetary Gearbox |
|---|---|---|
| Main meaning | Internal gear arrangement | Finished reducer assembly |
| Main parts | Sun gear, planet gears, ring gear, carrier | Gearset, housing, bearings, shaft, seals, adapter, lubrication |
| Selection focus | Gear motion and ratio | Torque, backlash, speed, load, mounting and service life |
| Buyer concern | How the gear system works | Which model fits the machine |
| Application use | Design and engineering explanation | Servo automation, CNC, packaging, robotics and machinery |
Why Gearset Quality Affects Gearbox Performance
The internal planetary gearset has a direct effect on the final gearbox performance.
If the gear teeth are poorly machined, the gearbox may create more noise, heat and backlash. If the planet carrier is not rigid enough, the reducer may lose accuracy under load. If the bearings cannot support the planet gears properly, service life may become shorter.
Important gearset-related factors include:
- Gear material
- Heat treatment
- Tooth profile accuracy
- Gear grinding quality
- Planet carrier rigidity
- Planet gear bearing support
- Ring gear machining accuracy
- Assembly control
These details are why two planetary gearboxes with the same ratio may perform very differently in a real machine.
For general gear terminology and industry background, buyers can also review resources from the American Gear Manufacturers Association.
Where Planetary Gearsets Are Used
Planetary gearsets are used in many mechanical systems, including automotive transmissions, industrial reducers, robotics, aerospace mechanisms, electric tools and motion control equipment.
For PlanetDrivePro, the most relevant application field is industrial motion control.
In this field, the gearset is built into precision planetary gearboxes used for:
- Servo motor reduction
- CNC feed axes
- Packaging machinery
- Automated assembly equipment
- Robot auxiliary axes
- Conveyor positioning
- Rotary indexing systems
- Precision motion modules
The value is not only the gearset itself, but the complete reducer structure that turns this compact gear arrangement into reliable industrial motion.
Where Zhuochuang Precision Gearboxes Fit
Dongguan Zhuochuang Precision Machinery Co., Ltd manufactures precision planetary gearboxes for automation, CNC machinery, robotics, packaging equipment and servo-driven positioning systems.
Our products are complete gearbox assemblies, not only loose planetary gearsets.
When selecting a precision planetary gearbox, the internal gearset matters, but the final choice should also consider ratio, torque, backlash, input speed, output structure, motor adapter, duty cycle and mounting space.
For same-axis servo layouts, review:
For space-limited 90-degree machine layouts, review:
For the main product category, visit:
Precision Planetary Gearbox Products
If you are not sure whether your application needs a standard inline gearbox, a right-angle gearbox, a low-backlash model or a multistage design, you can contact Zhuochuang for model selection support:
FAQ About Planetary Gearsets
Is a planetary gearset the same as a planetary gearbox?
No. A planetary gearset is the internal gear mechanism made of the sun gear, planet gears, ring gear and carrier. A planetary gearbox is the complete reducer assembly that includes the gearset, housing, bearings, shaft, seals, lubrication and motor mounting structure.
What is the function of a planetary gearset?
The function of a planetary gearset is to transmit power, reduce speed, increase torque and keep the input and output in a compact arrangement. In a gearbox, it helps convert motor speed into usable output motion.
Why does a planetary gearset use several planet gears?
Several planet gears allow the load to be shared across multiple gear meshes. This helps improve torque density and makes the design more compact than some traditional gear trains.
What parts are inside a planetary gearset?
A typical planetary gearset includes a sun gear, multiple planet gears, an internal ring gear and a planet carrier.
Can a planetary gearset provide low backlash?
The gearset design affects backlash, but low backlash depends on the complete gearbox design, including gear accuracy, carrier rigidity, bearing support and assembly control.
Is a planetary gearset used only in industrial gearboxes?
No. Planetary gearsets are also used in automotive transmissions, electric tools and other mechanical systems. For PlanetDrivePro, the main focus is precision planetary gearboxes for industrial automation.
Final Thought
A planetary gearset is the heart of a planetary gearbox, but it is not the whole product.
The sun gear, planet gears, ring gear and carrier explain why the structure can be compact, efficient and capable of high torque density.
However, real industrial gearbox performance also depends on housing rigidity, bearing support, gear quality, lubrication, backlash control, output design and motor mounting accuracy.
For engineers and buyers, understanding the planetary gearset is the first step. The next step is selecting a complete precision planetary gearbox that fits the machine’s ratio, torque, backlash, duty cycle and installation requirements.
